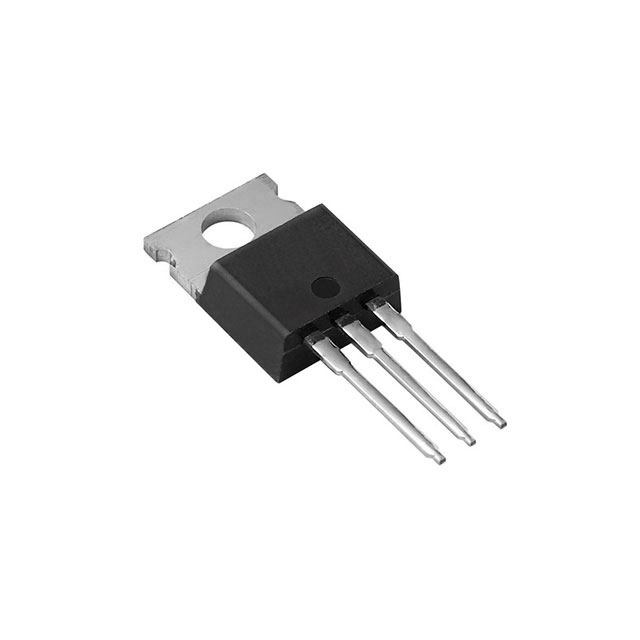

VX60M45C-M3/P

Active

Vishay General Semiconductor - Diodes Division

DIODE ARR SCHOTT 45V 30A TO220AB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VX60M45C-M3/P

Active

Vishay General Semiconductor - Diodes Division

DIODE ARR SCHOTT 45V 30A TO220AB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VX60M45C-M3/P

Current - Average Rectified (Io) (per Diode)	30 A
Diode Configuration	1 Pair Common Cathode
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	TO-220-3
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AB
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	620 mV

VX60M Series

Part	Grade	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Speed	Supplier Device Package	Technology	Mounting Type	Current - Average Rectified (Io) (per Diode)	Voltage - DC Reverse (Vr) (Max) [Max]	Qualification	Package / Case	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Diode Configuration
Vishay General Semiconductor - Diodes Division VX60M100C-M3/P	Automotive	320 µA	820 mV	200 mA 500 ns	TO-220AB	Schottky	Through Hole	30 A	100 V	AEC-Q101	TO-220-3	-40 °C	175 ░C	1 Pair Common Cathode
Vishay General Semiconductor - Diodes Division VX60M45PW-M3/P	Automotive	450 µA	600 mV	200 mA 500 ns	TO-247AD	Schottky	Through Hole	30 A	45 V	AEC-Q101	TO-247-3	-40 °C	175 ░C	1 Pair Common Cathode
Vishay General Semiconductor - Diodes Division VX60M100PWHM3/P		500 µA	830 mV	200 mA 500 ns	TO-247AD	Schottky	Through Hole	30 A	100 V		TO-247-3	-40 °C	175 ░C	1 Pair Common Cathode
Vishay General Semiconductor - Diodes Division VX60M45C-M3/P	Automotive		620 mV	200 mA 500 ns	TO-220AB	Schottky	Through Hole	30 A	45 V	AEC-Q101	TO-220-3	-40 °C	175 ░C	1 Pair Common Cathode
Vishay General Semiconductor - Diodes Division VX60M60PW-M3/P	Automotive	650 µA	630 mV	200 mA 500 ns	TO-247AD	Schottky	Through Hole	30 A	60 V	AEC-Q101	TO-247-3	-40 °C	175 ░C	1 Pair Common Cathode
Vishay General Semiconductor - Diodes Division VX60M45PWHM3/P	Automotive	450 µA	600 mV	200 mA 500 ns	TO-247AD	Schottky	Through Hole	30 A	45 V	AEC-Q101	TO-247-3	-40 °C	175 ░C	1 Pair Common Cathode
Vishay General Semiconductor - Diodes Division VX60M100CHM3/P	Automotive	320 µA	820 mV	200 mA 500 ns	TO-220AB	Schottky	Through Hole	30 A	100 V	AEC-Q101	TO-220-3	-40 °C	175 ░C	1 Pair Common Cathode
Vishay General Semiconductor - Diodes Division VX60M60PWHM3/P	Automotive	650 µA	630 mV	200 mA 500 ns	TO-247AD	Schottky	Through Hole	30 A	60 V	AEC-Q101	TO-247-3	-40 °C	175 ░C	1 Pair Common Cathode
Vishay General Semiconductor - Diodes Division VX60M60CHM3/P	Automotive	600 µA	660 mV	200 mA 500 ns	TO-220AB	Schottky	Through Hole	30 A	60 V	AEC-Q101	TO-220-3	-40 °C	175 ░C	1 Pair Common Cathode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 0.89
Newark	Each (Supplied on Full Reel)	1000	$ 1.02
		2000	$ 0.96
		4000	$ 0.87
		6000	$ 0.84
		10000	$ 0.81

Description

General part information

VX60M Series

Diode Array 1 Pair Common Cathode 45 V 30A Through Hole TO-220-3

Documents

Technical documentation and resources
