Technical Specifications
Parameters and characteristics for this part
| Specification | 6182.0028 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | cCSAus, VDE, UL |
| Connector Style | IEC 320-2-2/F |
| Connector Type | Receptacle, Female Sockets |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 32.4 mm |
| Panel Cutout Dimensions [y] | 24.7 mm |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
5098 Series

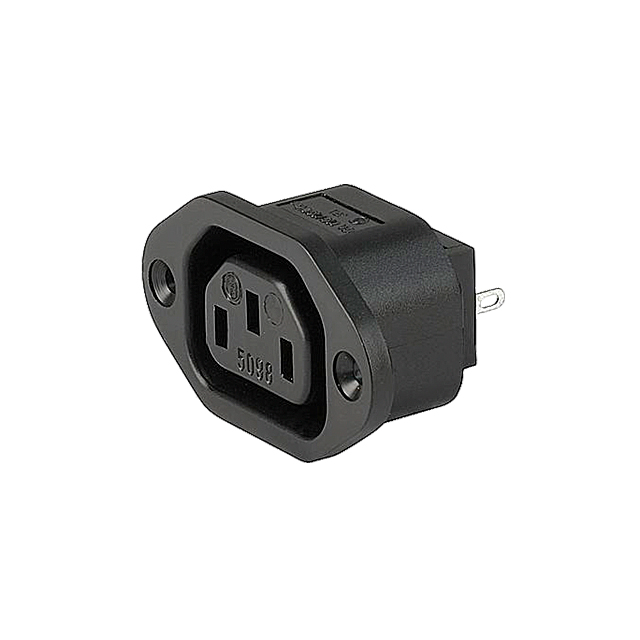

AC Power Entry Modules 5098 APPLIANCE OUTLT 10A 70C
