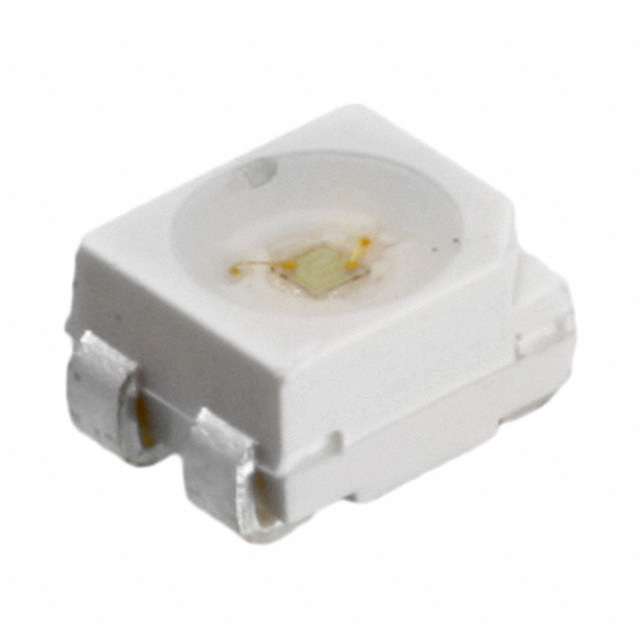

ASMT-QGBE-NFH0E

Obsolete

Broadcom Limited

LED GREEN 522NM 0.5W 4PLCC

Search across all available documentation for this part.

Obsolete

Broadcom Limited

LED GREEN 522NM 0.5W 4PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-QGBE-NFH0E

Color	Green
Current - Max [Max]	300 mA
Current - Test	150 mA
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lumens/Watt @ Current - Test	44 lm/W
Luminous Flux @ Current/Temperature	24 lm
Luminous Flux @ Current/Temperature [Max]	33 lm
Luminous Flux @ Current/Temperature [Min]	15 lm
Mounting Type	Surface Mount
Package / Case	4-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Supplier Device Package	4-PLCC
Thermal Resistance of Package	40 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.6 V
Wavelength	522 nm

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Lumens/Watt @ Current - Test	Viewing Angle	Color	Current - Test	Thermal Resistance of Package	Package / Case	Wavelength	Mounting Type	Supplier Device Package
Broadcom Limited ASMT-QGBE-NFH0E	3.2 mm	0.126 in	0.11 in	2.8 mm	2.1 mm	0.083 "	300 mA	3.6 V	24 lm	15 lm	33 lm	44 lm/W	120 °	Green	150 mA	40 °C/W	4-PLCC	522 nm	Surface Mount	4-PLCC
