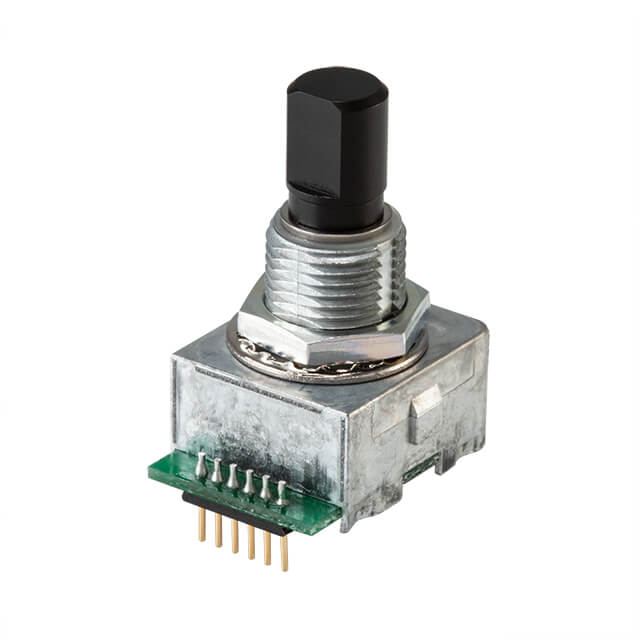

C14D32N-C3PA

Active

CUI Devices

15 MM, 32 PPR, 6.35 MM PLASTIC S

Search across all available documentation for this part.

Active

CUI Devices

15 MM, 32 PPR, 6.35 MM PLASTIC S

Technical Specifications

Parameters and characteristics for this part

Part	Rotational Life (Cycles Min)	Orientation	Output Type	Actuator Type	Actuator Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Encoder Type	Termination Style
CUI Devices C14D32P-F3P	1M	Vertical	Quadrature (Incremental)	0.25	Flatted End	Panel PCB Through Hole	4.75 V	5.25 V	Optical	PC Pin
CUI Devices C14D32P-B3PA	1M	Right Angle	Quadrature (Incremental)	0.25	Flatted End		4.75 V	5.25 V	Optical	Cable with Connector
CUI Devices C14D32P-A2P	1M	Right Angle	Quadrature (Incremental)		6mm Dia Round End		4.75 V	5.25 V	Optical	Solder Lug
CUI Devices C14D32N-C3P	1M	Vertical	Quadrature (Incremental)	0.25	Flatted End	Panel PCB Through Hole	4.75 V	5.25 V	Optical	PC Pin
CUI Devices C14D32P-B33	1M	Right Angle	Quadrature (Incremental)	0.25	Flatted End		4.75 V	5.25 V	Optical	Cable with Connector
CUI Devices C14D32N-C3A	1M	Vertical	Quadrature (Incremental)	0.25	Flatted End	Panel PCB Through Hole			Optical	PC Pin
CUI Devices C14D32N-C3PA	1M	Vertical	Quadrature (Incremental)	0.25	Flatted End	Panel PCB Through Hole	4.75 V	5.25 V	Optical	PC Pin
CUI Devices C14D32P-C2	1M	Vertical	Quadrature (Incremental)		6mm Dia Round End	Panel PCB Through Hole			Optical	PC Pin
CUI Devices C14D32P-A3P	1M	Right Angle	Quadrature (Incremental)	0.25	Flatted End		4.75 V	5.25 V	Optical	Solder Lug
CUI Devices C14D32P-F3PA	1M	Vertical	Quadrature (Incremental)	0.25	Flatted End	Panel PCB Through Hole	4.75 V	5.25 V	Optical	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 24.99

General part information

Rotary Encoder Optical 32 Quadrature (Incremental) Vertical

Technical documentation and resources
