C8112.41.03
ActivePrysmian Group

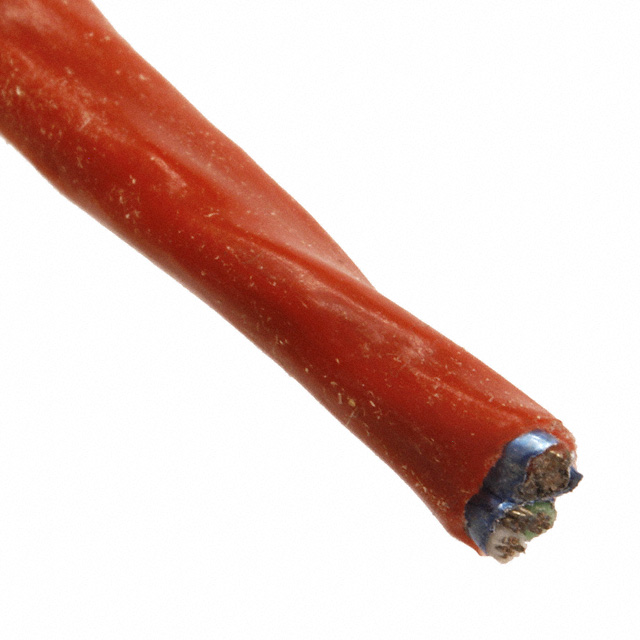

MULTI-PAIR 4COND 22AWG RED 100'
Deep-Dive with AI
Search across all available documentation for this part.
C8112.41.03
ActivePrysmian Group
MULTI-PAIR 4COND 22AWG RED 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C8112.41.03 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Flame Retardant, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 4.72 mm |
| Jacket (Insulation) Diameter [diameter] | 0.186 in |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket (Insulation) Thickness | 0.356 mm |
| Jacket (Insulation) Thickness | 0.014 in |
| Jacket Color | Red |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 1746.67 | |
| 1 | $ 282.97 | |||
| 3 | $ 1615.90 | |||
| 5 | $ 1559.86 | |||
| 5 | $ 231.52 | |||
| 10 | $ 180.07 | |||
Description
General part information
C8112 Series
4 (2 Pair) Conductor Multi-Pair Cable Red 22 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
