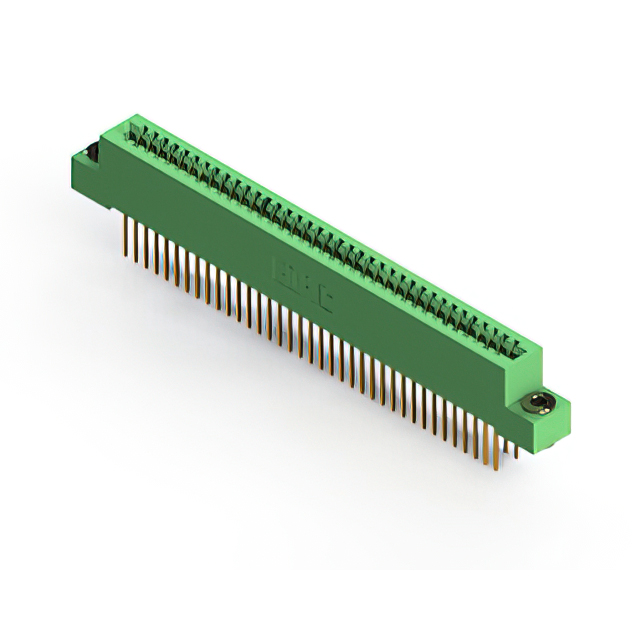

842-074-541-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

842-074-541-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	842-074-541-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

842-074 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Termination	Material - Insulation	Read Out	Mounting Type	Number of Rows	Contact Finish	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Termination Rows	Contact Type	Color	Contact Material	Features
EDAC Inc. 842-074-500-212	125 °C	-40 °C	Non Specified - Dual Edge	Solder Eyelet(s)	Diallyl Phthalate (DAP)	Dual	Through Hole	2	Gold	37	37	37	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	74	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	Green	Copper Alloy
EDAC Inc. 842-074-559-202	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Diallyl Phthalate (DAP)	Dual	Through Hole Right Angle	2	Gold	37	37	37	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	74	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	Green	Copper Alloy
EDAC Inc. 842-074-541-202	125 °C	-40 °C	Non Specified - Dual Edge	Wire Wrap	Diallyl Phthalate (DAP)	Dual	Through Hole	2	Gold	37	37	37	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	74	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	Green	Copper Alloy
EDAC Inc. 842-074-558-208	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Diallyl Phthalate (DAP)	Dual	Through Hole Right Angle	2	Gold	37	37	37	10 Áin	0.25 Ám	2.54 mm	0.1 in		4-40 Flush Mount Threaded Insert Top Opening		74	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	Green	Copper Alloy
EDAC Inc. 842-074-558-203	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Diallyl Phthalate (DAP)	Dual	Through Hole Right Angle	2	Gold	37	37	37	10 Áin	0.25 Ám	2.54 mm	0.1 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	74	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	Green	Copper Alloy
EDAC Inc. 842-074-521-208	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Diallyl Phthalate (DAP)	Dual	Through Hole	2	Gold	37	37	37	10 Áin	0.25 Ám	2.54 mm	0.1 in		4-40 Flush Mount Threaded Insert Top Opening		74	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	Green	Copper Alloy
EDAC Inc. 842-074-541-203	125 °C	-40 °C	Non Specified - Dual Edge	Wire Wrap	Diallyl Phthalate (DAP)	Dual	Through Hole	2	Gold	37	37	37	10 Áin	0.25 Ám	2.54 mm	0.1 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	74	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	Green	Copper Alloy
EDAC Inc. 842-074-555-212	125 °C	-40 °C	Non Specified - Dual Edge	Solder	Diallyl Phthalate (DAP)	Dual	Board Edge Straddle Mount	2	Gold	37	37	37	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	74	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	Green	Copper Alloy	Card Extender
EDAC Inc. 842-074-541-204	125 °C	-40 °C	Non Specified - Dual Edge	Wire Wrap	Diallyl Phthalate (DAP)	Dual	Through Hole	2	Gold	37	37	37	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	74	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	Green	Copper Alloy
EDAC Inc. 842-074-500-202	125 °C	-40 °C	Non Specified - Dual Edge	Solder Eyelet(s)	Diallyl Phthalate (DAP)	Dual	Through Hole	2	Gold	37	37	37	10 Áin	0.25 Ám	2.54 mm	0.1 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	74	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	Green	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 99.70
Newark	Each	1	$ 115.09
		100	$ 78.55
		250	$ 74.86
		500	$ 65.59
		1000	$ 46.75

Description

General part information

842-074 Series

74 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
