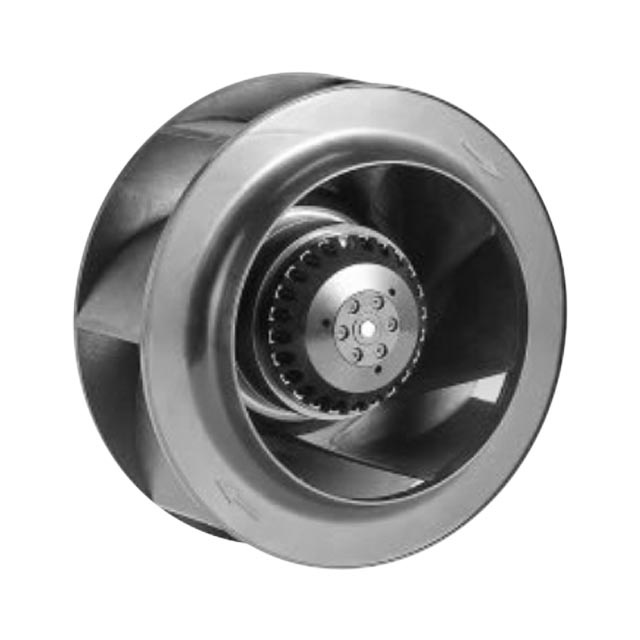

OAB22585-11-1WB - MFG_OAB22585

OAB22585-11-1WB

Active
Orion Fans

FAN BLOWER, MOTORIZED IMPELLER, 115 VAC, AC, 225 MM, 85 MM, 680 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN
OAB22585-11-1WB - MFG_OAB22585

OAB22585-11-1WB

Active
Orion Fans

FAN BLOWER, MOTORIZED IMPELLER, 115 VAC, AC, 225 MM, 85 MM, 680 CFM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Technical Specifications

Parameters and characteristics for this part

SpecificationOAB22585-11-1WB
Air Flow680 CFM
Air Flow19.04 m³/min
Bearing TypeBall
Current Rating (Amps)1.2 A
Fan TypeMotorized Impellers
FeaturesPermanent Split Capacitor Motor
Ingress ProtectionIP55 - Dust Protected, Water Resistant
Lifetime @ Temp.40000 Hrs
Material - BladeThermoplastic
Material - FrameAluminum
Noise75 dB(A)
Operating Temperature [Max]60 °C
Operating Temperature [Max]60 °C
Operating Temperature [Min]-40 °C
Operating Temperature [Min]-40 °C
Power (Watts)135 W
RPM3000 RPM
Size / Dimension [diameter]225 mm
Static Pressure2.5 in H2O
Static Pressure622.7 Pa
Termination4 Wire Leads
Voltage - Rated115 VAC
Weight5.1 lbs
Weight2.3 kg
Width [y]85 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 8$ 143.62
NewarkEach 1$ 130.53
5$ 127.27
10$ 124.01
25$ 117.48

Description

General part information

OAB22585 Series

Fan Motorized Impellers 115VAC Round - 225mm Dia Ball 680.0 CFM (19.04m³/min) 4 Wire Leads

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
