337-009-523-158
ActiveEDAC Inc.
CONN EDGE SGL FMALE 9POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-009-523-158
ActiveEDAC Inc.
CONN EDGE SGL FMALE 9POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-009-523-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
337-009 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Contact Finish | Termination | Flange Feature | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Mounting Type | Number of Positions/Bay/Row [custom] | Number of Positions | Gender | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Rows | Color | Card Type | Contact Type | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | Wire Wrap | M3 Threaded Insert Top Mount Opening | Single | -40 °C | 105 ░C | 1 | Through Hole | 9 | 9 | Female | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Green | Non Specified - Single Edge | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | Single | -40 °C | 105 ░C | 1 | Through Hole Right Angle | 9 | 9 | Female | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Green | Non Specified - Single Edge | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | Single | -40 °C | 105 ░C | 1 | Through Hole | 9 | 9 | Female | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Green | Non Specified - Single Edge | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Single | -40 °C | 105 ░C | 1 | Through Hole | 9 | 9 | Female | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Green | Non Specified - Single Edge | Cantilever | Card Guides | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | Solder | 4-40 Threaded Insert Top Mount Opening | Single | -40 °C | 105 ░C | 1 | Through Hole | 9 | 9 | Female | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Green | Non Specified - Single Edge | Cantilever | Card Guides | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | Solder | M3 Threaded Insert Top Mount Opening | Single | -40 °C | 105 ░C | 1 | Through Hole | 9 | 9 | Female | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Green | Non Specified - Single Edge | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | Single | -40 °C | 105 ░C | 1 | Through Hole | 9 | 9 | Female | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Green | Non Specified - Single Edge | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | Solder | Top Mount Opening Unthreaded | Single | -40 °C | 105 ░C | 1 | Through Hole | 9 | 9 | Female | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Green | Non Specified - Single Edge | Cantilever | 0.156 in | 3.96 mm | |
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | Solder | Flush Mount M3 Threaded Insert Top Opening | Single | -40 °C | 105 ░C | 1 | Through Hole | 9 | 9 | Female | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Green | Non Specified - Single Edge | Cantilever | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | Solder | Flush Mount M3 Threaded Insert Top Opening | Single | -40 °C | 105 ░C | 1 | Through Hole | 9 | 9 | Female | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Green | Non Specified - Single Edge | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 6.64 | |
Description
General part information
337-009 Series

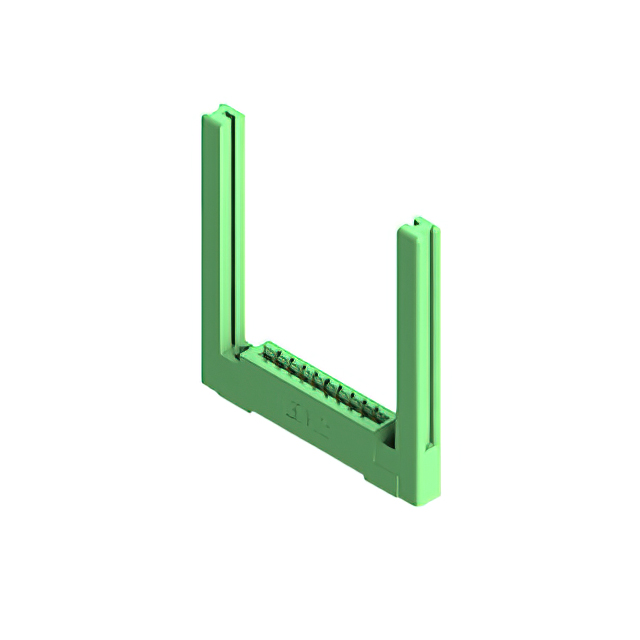

9 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
