8-1625999-6
ObsoleteTE Connectivity Passive Product

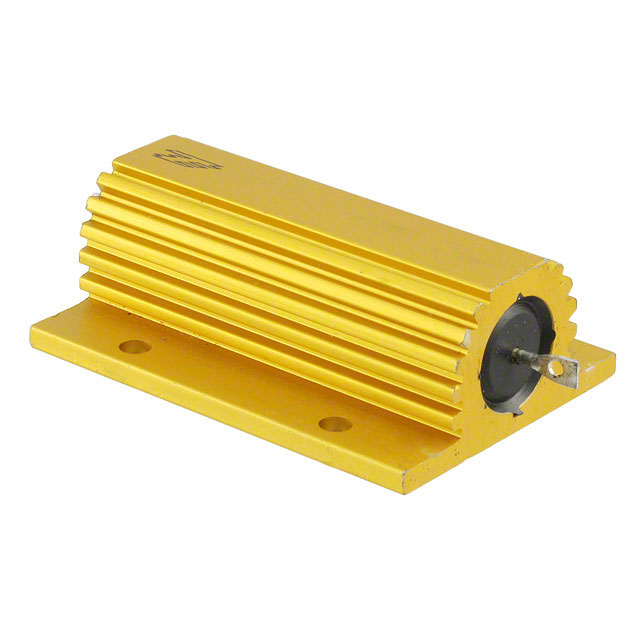

RES CHAS MNT 11.5 OHM 1% 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8-1625999-6
ObsoleteTE Connectivity Passive Product
RES CHAS MNT 11.5 OHM 1% 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-1625999-6 |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] [z] | 26 mm |
| Height - Seated (Max) [Max] [z] | 1.024 in |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Power (Watts) | 100 W |
| Resistance | 11.5 Ohms |
| Size / Dimension [x] | 65.5 mm |
| Size / Dimension [x] | 2.579 in |
| Size / Dimension [y] | 47.5 mm |
| Size / Dimension [y] | 1.87 " |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1625999 Series
11.5 Ohms ±1% 100W Wirewound Chassis Mount Resistor
