19370240282

Active

HARTING Technology Group

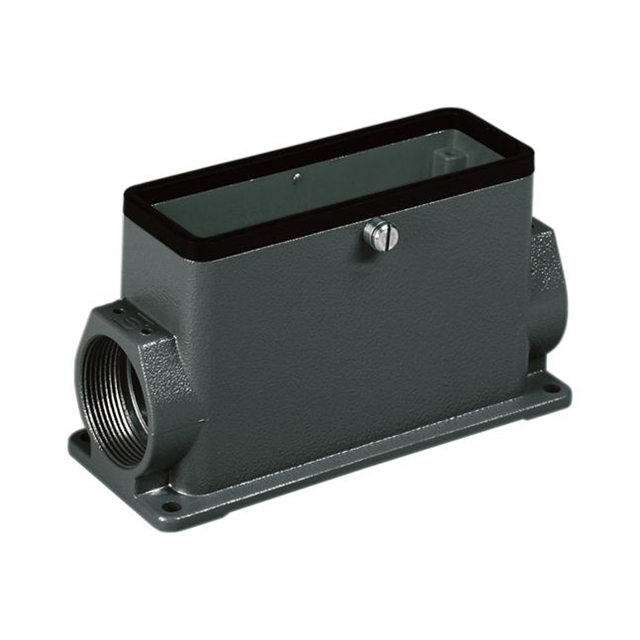

HAN M BASE SURFACE 2 PG 29 FOR CENTRAL L ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN M BASE SURFACE 2 PG 29 FOR CENTRAL L ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	19370240282

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.669 "
Size / Dimension [x]	144 mm
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	3.181 "
Size / Dimension [z]	80.8 mm
Style	Side Entry
Thread Size	M32

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ingress Protection	Size	Connector Type	Style	Housing Material	Features	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Lock Location	Housing Color	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19370240282	5.669 "	3.181 "	80.8 mm	57 mm	2.244 "	144 mm	IP65 - Dust Tight Water Resistant	24 B	Base - Box Mount	Side Entry	Aluminum Die Cast	Feed Through	M32	125 °C	-40 °C	Powder Coated	Locking Clip (1) on Hood	Black
HARTING Technology Group 19370240733	4.724 "	3.087 "			1.693 in	120 mm	IP65 - Dust Tight Water Resistant	24 B	Hood - Coupling	Side Entry	Aluminum Die Cast	Cable to Cable		125 °C	-40 °C	Powder Coated	Locking Clip (2) on Hood Top	Black	43 mm	78.4 mm
HARTING Technology Group 19370240466							IP65 IP66 IP67	24 B	Hood	Dual Top Entry	Aluminum Die Cast		M25	125 °C	-40 °C	Powder Coated	Locking Clip (2) on Base Bottom	Black
HARTING Technology Group 19370240548							IP65 IP66 IP67	24 B	Hood	Side Entry	Aluminum Die Cast			125 °C	-40 °C	Powder Coated	Locking Clip (1) on Base Bottom	Black
HARTING Technology Group 19370240427	4.724 "	2.992 in			1.693 in	120 mm	IP65 - Dust Tight Water Resistant	24 B	Hood	Top Entry	Aluminum Die Cast		M32	125 °C	-40 °C	Powder Coated	Locking Clip (2) on Base Bottom	Black	43 mm	76 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M32 24B IP65 - Dust Tight, Water Resistant
