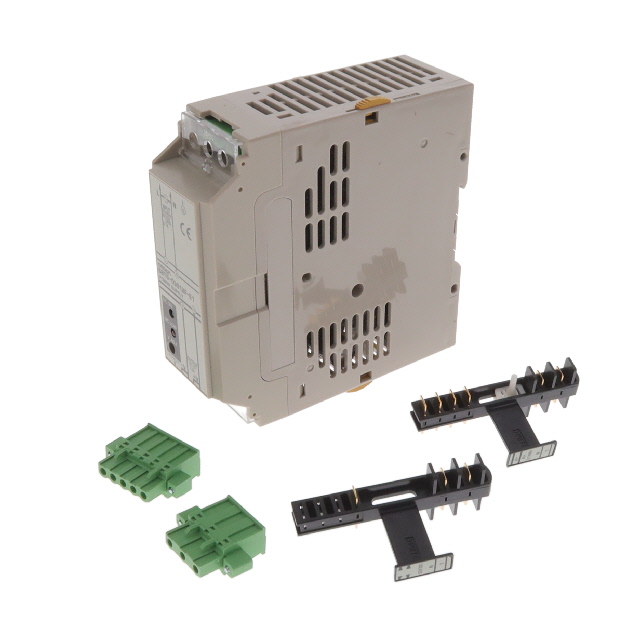

S8TS-03012F-E1

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 12V 30W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 12V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	S8TS-03012F-E1

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cULus, VDE, CE, cURus
Current - Output (Max) [Max]	2.5 A
Efficiency	73 %
Features	Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	30 W
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.72 in
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.69 in
Size / Dimension [z]	4.72 "
Size / Dimension [z]	120 mm
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Efficiency	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Power (Watts)	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Isolation	Input Type	Approval Agency	Applications	Features
Omron Electronics Inc-EMC Div S8TS-03012F-E1	73 %	1	85 VAC	264 VAC	30 W	2.5 A	4.72 "	43 mm	120 mm	120 mm	4.72 in	1.69 in	55 °C	-10 °C	12 V	3000 V	AC	CE cULus cURus VDE	ITE (Commercial)	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 12V 30W
