Q-3B01I0003084I

Active

Amphenol Custom Cable

COAX CBL SMA TO MMCX 7'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO MMCX 7'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3B01I0003084I

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	SMA to MMCX

Part	1st Contact Gender	2nd Connector Mounting Type	Connector Impedance	1st Connector Mounting Type	2nd Contact Gender	Color	1st Connector	2nd Connector Mounting Feature	Cable Type	Style	Frequency - Max [Max]	Overall Impedance	Features	2nd Connector	Length	Length	Length	Cable Impedance
Amphenol Custom Cable Q-3B01I00051.5M	Male	Panel Mount	50 Ohms	Free Hanging (In-Line)	Female	Copper	SMA Plug	Bulkhead - Front Side Nut	RG-316	SMA to MMCX	3 GHz	50 Ohms	Shielded	MMCX Jack	59.1 in	4.9 ft	1.5 m	50 Ohms
Amphenol Custom Cable Q-3B01I0005060I	Male	Panel Mount	50 Ohms	Free Hanging (In-Line)	Female	Copper	SMA Plug	Bulkhead - Front Side Nut	RG-316	SMA to MMCX	3 GHz	50 Ohms	Shielded	MMCX Jack	5 '	5 ft	1.5 m	50 Ohms
Amphenol Custom Cable Q-3B01I0003084I	Male	Panel Mount	50 Ohms	Free Hanging (In-Line)	Female	Black	SMA Plug	Bulkhead - Front Side Nut	RG-174	SMA to MMCX	1 GHz	50 Ohms	Shielded	MMCX Jack	84 in	7 ft	2.1 m	50 Ohms
Amphenol Custom Cable Q-3B01I00032.5M	Male	Panel Mount	50 Ohms	Free Hanging (In-Line)	Female	Black	SMA Plug	Bulkhead - Front Side Nut	RG-174	SMA to MMCX	1 GHz	50 Ohms	Shielded	MMCX Jack	98.4 in	8.2 '	2.5 m	50 Ohms
Amphenol Custom Cable Q-3B01I0003108I	Male	Panel Mount	50 Ohms	Free Hanging (In-Line)	Female	Black	SMA Plug	Bulkhead - Front Side Nut	RG-174	SMA to MMCX	1 GHz	50 Ohms	Shielded	MMCX Jack	108 in	9 ft	2.7 m	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

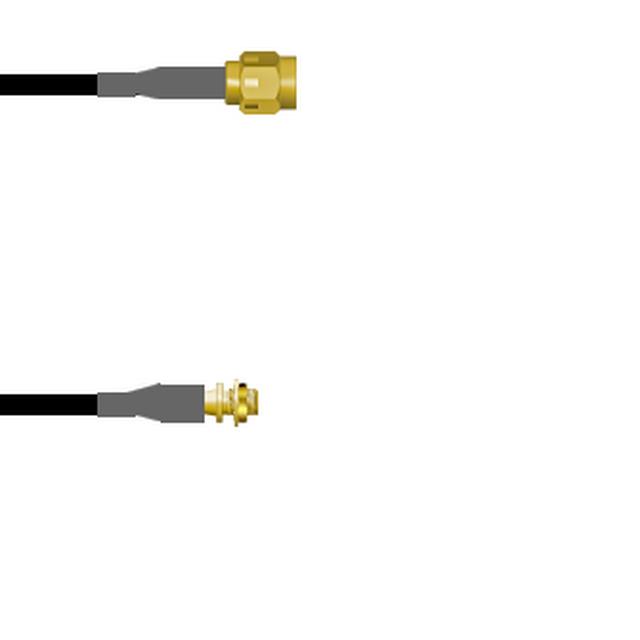

Cable Assembly Coaxial SMA to MMCX RG-174 84.0" (2.1m) 7.0'
