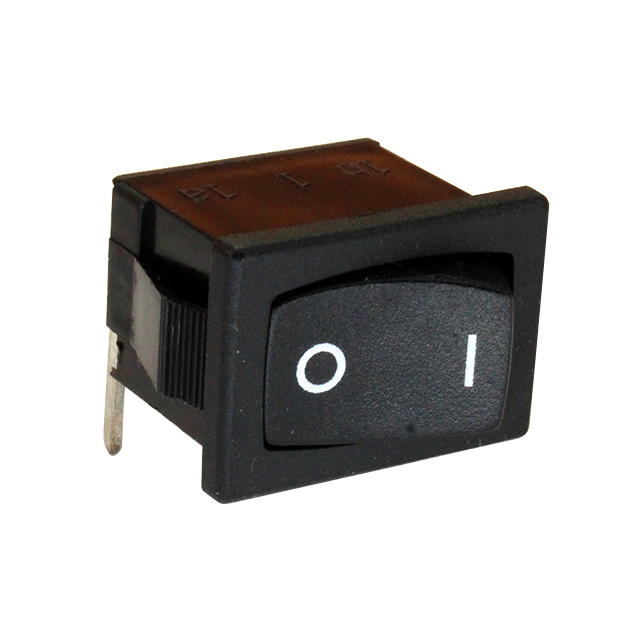

RA1122DWR

Active

CIT Relay and Switch

SWITCH ROCKER SPST 15A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH ROCKER SPST 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RA1122DWR

Actuator Marking	O I
Actuator Type	Concave (Curved)
Approval Agency	cULus
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Mounting Type	Snap-In, Right Angle, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Switch Function	On-Off
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Circuit	Voltage Rating - AC	Approval Agency	Switch Function	Mounting Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Termination Style	Actuator Marking	Actuator Type	Electrical Life
CIT Relay and Switch RA1122DWR	SPST	125 V	cULus	On-Off	Panel Mount Right Angle Snap-In	15 A	-40 °C	105 ░C	Black	PC Pin	O I	Concave (Curved)	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 15A (AC) 125 V Panel Mount, Snap-In, Right Angle
