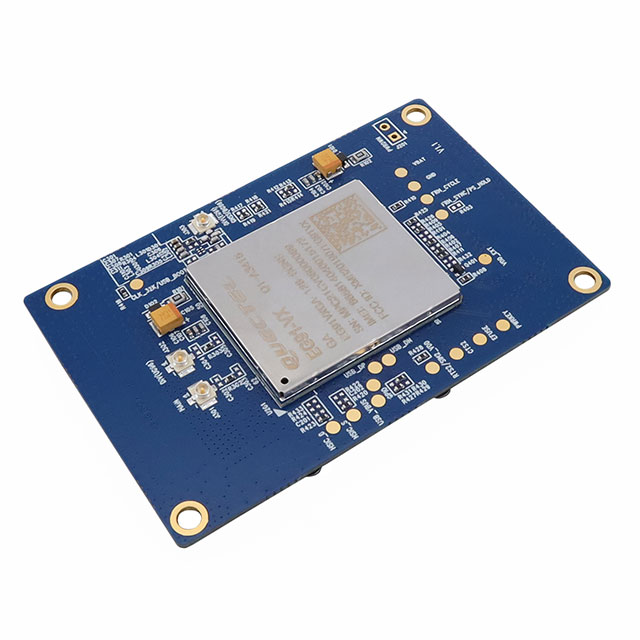

EG91VXGATEA-128-SGNS

Active

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Search across all available documentation for this part.

EG91VXGATEA-128-SGNS

Active

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EG91VXGATEA-128-SGNS

Antenna Type	Antenna Not Included
Current - Receiving	29 mA
Current - Transmitting	29 mA
Data Rate	10 Mbps
Mounting Type	Surface Mount
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Package / Case	Module
Protocol	LTE, GPS, UMTS, Galileo, GLONASS, Beidou, GNSS
RF Family/Standard	Cellular, Navigation
Serial Interfaces	USB, PCM, UART, SPI, I2C
Voltage - Supply [Max]	4.3 V
Voltage - Supply [Min]	3.3 V

EG91 Series

Part	Current - Transmitting	Current - Receiving	RF Family/Standard	Mounting Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Utilized IC / Part	Serial Interfaces	Operating Temperature [Min]	Operating Temperature [Max]	Protocol	Antenna Type
Quectel EG91NAFB-512-SGNS	29 mA	29 mA	Cellular Navigation	Surface Mount	Module	4.3 V	3.3 V	42 Mbps	MDM9207-1	I2C PCM SPI UART USB	-35 °C	75 ░C	Beidou Galileo GLONASS GNSS GPS LTE UMTS WCDMA	Antenna Not Included
Quectel EG91EXGA-128-SGNS	29 mA	29 mA	Cellular	Surface Mount	Module	4.3 V	3.3 V	42 Mbps	MDM9207-1	I2C PCM SPI UART USB	-35 °C	75 ░C	EDGE GPRS LTE UMTS WCDMA	Antenna Not Included
Quectel EG91NAXGA-128-SGNS	29 mA	29 mA	Cellular Navigation	Surface Mount	Module	4.3 V	3.3 V	42 Mbps	MDM9207-1	I2C PCM SPI UART USB	-35 °C	75 ░C	Beidou Galileo GLONASS GNSS GPS LTE UMTS WCDMA	Antenna Not Included
Quectel EG91NAFBTEA-512-SGNS	29 mA	29 mA	Cellular Navigation	Surface Mount	Module	4.3 V	3.3 V	42 Mbps		I2C PCM SPI UART USB	-35 °C	75 ░C	Beidou Galileo GLONASS GNSS GPS LTE UMTS WCDMA	Antenna Not Included
Quectel EG91VXGATEA-128-SGNS	29 mA	29 mA	Cellular Navigation	Surface Mount	Module	4.3 V	3.3 V	10 Mbps		I2C PCM SPI UART USB	-35 °C	75 ░C	Beidou Galileo GLONASS GNSS GPS LTE UMTS	Antenna Not Included
Quectel EG91EFB-512-SNND	29 mA	29 mA	Cellular	Surface Mount	Module	4.3 V	3.3 V	42 Mbps	MDM9207-1	I2C PCM SPI UART USB	-35 °C	75 ░C	EDGE GPRS LTE UMTS WCDMA	Antenna Not Included
Quectel EG91NSGA-512-SGNS	29 mA	29 mA	Cellular Navigation	Surface Mount	Module	4.3 V	3.3 V	42 Mbps		I2C PCM SPI UART USB	-35 °C	75 ░C	Beidou Galileo GLONASS GNSS GPS LTE UMTS WCDMA	Antenna Not Included
Quectel EG91VXGA-128-SGNS	29 mA	29 mA	Cellular Navigation	Surface Mount	Module	4.3 V	3.3 V	10 Mbps	MDM9207-1	I2C PCM SPI UART USB	-35 °C	75 ░C	Beidou Galileo GLONASS GNSS GPS LTE UMTS	Antenna Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 63.53

Description

General part information

EG91 Series

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, UMTS Transceiver Module Antenna Not Included Surface Mount

Documents

Technical documentation and resources

No documents available
