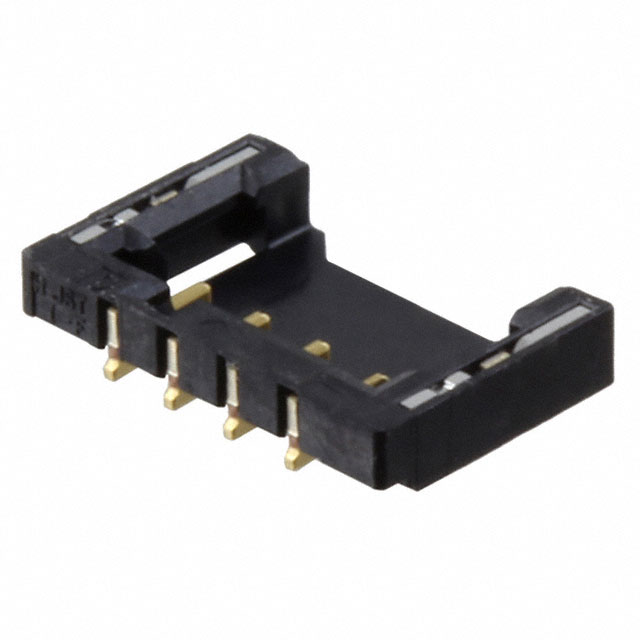

BM04B-ACHFKS-GACN-ETF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 4POS 1.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

BM04B-ACHFKS-GACN-ETF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 4POS 1.2MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BM04B-ACHFKS-GACN-ETF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating (Amps)	2.5 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	1.43 mm
Insulation Height	0.056 "
Insulation Material	Polymer
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.047 in
Pitch - Mating	1.2 mm
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

BM04B-AC Series

Part	Contact Finish - Mating	Connector Type	Voltage Rating	Contact Shape	Mounting Type	Features	Contact Type	Termination	Fastening Type	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Color	Shrouding	Number of Positions	Contact Material	Style	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]
JST Sales America Inc. BM04B-ACHFKS-GACN-ETF	Gold	Header	50 V	Rectangular	Surface Mount Right Angle	Solder Retention	Male Blade	Solder	Detent Lock	1	UL94 V-0	0.047 in	1.2 mm	All	Black	Shrouded - 3 Wall	4	Copper Alloy	Board to Cable/Wire	Polymer	-25 °C	85 °C	1.43 mm	0.056 "	2.5 A
JST Sales America Inc. BM04B-ACHSS-A-GAN-TF	Gold	Header	50 V	Rectangular	Surface Mount Right Angle	Solder Retention	Male Blade	Solder	Detent Lock	1	UL94 V-0	0.047 in	1.2 mm	All	Natural	Shrouded - 3 Wall	4	Copper Alloy	Board to Cable/Wire	Thermoplastic	-25 °C	85 °C			1.5 A	0.055 in	1.4 mm
JST Sales America Inc. BM04B-ACHSS-A-GAN-ETF(LF)(SN)	Gold	Header	50 V	Rectangular	Surface Mount Right Angle	Solder Retention	Male Blade	Solder	Detent Lock	1	UL94 V-0	0.047 in	1.2 mm	All	Natural	Shrouded - 3 Wall	4	Copper Alloy	Board to Cable/Wire	Thermoplastic	-25 °C	85 °C			1.5 A	0.055 in	1.4 mm
JST Sales America Inc. BM04B-ACHKS-A-GAN-TF	Gold	Header	50 V	Rectangular	Surface Mount Right Angle	Solder Retention	Male Blade	Solder	Detent Lock	1	UL94 V-0	0.047 in	1.2 mm	All	Black	Shrouded - 3 Wall	4	Copper Alloy	Board to Cable/Wire	Thermoplastic	-25 °C	85 °C			1.5 A	0.055 in	1.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.21
		10	$ 0.92
		100	$ 0.71
		500	$ 0.59
		1000	$ 0.55
	Digi-Reel®	1	$ 1.21
		10	$ 0.92
		100	$ 0.71
		500	$ 0.59
		1000	$ 0.55
	Tape & Reel (TR)	6000	$ 0.46
		12000	$ 0.43
		18000	$ 0.41

Description

General part information

BM04B-AC Series

Connector Header Surface Mount, Right Angle 4 position 0.047" (1.20mm)
