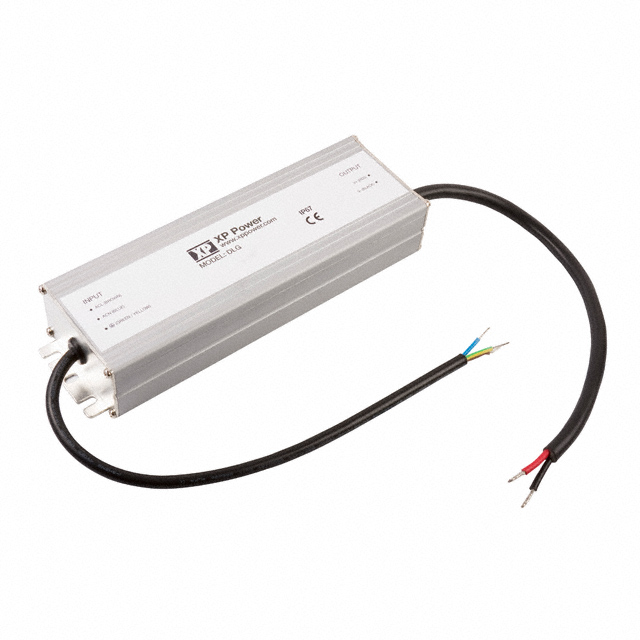

DLG100PS36

Obsolete

XP POWER

LED DRIVER CC/CV AC/DC 36V 2.8A

Search across all available documentation for this part.

Obsolete

XP POWER

LED DRIVER CC/CV AC/DC 36V 2.8A

Technical Specifications

Parameters and characteristics for this part

Part	Topology	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Type	Voltage - Isolation	Efficiency	Approval Agency	Voltage - Output	Power (Watts)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Weight	Weight	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max)	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]
XP POWER DLG100PS36	AC DC Converter	39 mm	222 mm	68 mm	1.54 "	8.74 "	2.68 "	OTP OVP SCP	Constant Current Voltage	3750 V	90 %	CE EN IEC UL	36 V	100 W	1	70 °C	-30 ░C	Wire Leads	1 kg	2.3 lbs	305 VAC	Chassis Mount	2.8 A	90 VAC
XP POWER DLG100PS12	AC DC Converter	39 mm	222 mm	68 mm	1.54 "	8.74 "	2.68 "	OTP OVP SCP	Constant Current Voltage	3750 V	88 %	CE EN IEC UL	12 V	100 W	1	70 °C	-30 ░C	Wire Leads	1 kg	2.3 lbs	305 VAC	Chassis Mount		90 VAC	8.3 A
XP POWER DLG100PS24	AC DC Converter	39 mm	222 mm	68 mm	1.54 "	8.74 "	2.68 "	OTP OVP SCP	Constant Current Voltage	3750 V	90 %	CE EN IEC UL	24 V	100 W	1	70 °C	-30 ░C	Wire Leads	1 kg	2.3 lbs	305 VAC	Chassis Mount		90 VAC	4.2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
