8380-4SG-519

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8380-4SG-519

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8380-4SG-519

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.21 in
Cable Opening [Max] [diameter]	5.33 mm
Cable Opening [Min] [diameter]	0.19 in
Cable Opening [Min] [diameter]	4.83 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

8380-4SG Series

Part	Number of Positions	Fastening Type	Current Rating (Amps)	Applications	Shielding	Connector Type	Orientation	Voltage Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Color	Mounting Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Termination	Contact Finish - Mating	Ingress Protection	Features	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 8380-4SG-321	4	Bayonet Lock	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	Receptacle Female Sockets	Keyed	600 V	5.33 mm	5.84 mm	0.21 in	0.23 in	Black	Free Hanging (In-Line)	Brass	115 °C	-40 °C	Nylon Polyamide (PA)	Crimp	Gold	Weathertight	Backshell	Plastic
Conxall/Switchcraft 8380-4SG-519	4	Bayonet Lock	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	Receptacle Female Sockets	Keyed	600 V	4.83 mm		0.19 in	0.21 in	Black	Free Hanging (In-Line)	Brass	115 °C	-40 °C	Nylon Polyamide (PA)	Crimp	Gold	Weathertight	Backshell	Plastic	5.33 mm
Conxall/Switchcraft 8380-4SG-513	4	Bayonet Lock	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	Receptacle Female Sockets	Keyed	600 V					Black	Free Hanging (In-Line)	Brass	115 °C	-40 °C	Nylon Polyamide (PA)	Crimp	Gold	Weathertight	Backshell	Plastic		0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 8380-4SG-522	4	Bayonet Lock	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	Receptacle Female Sockets	Keyed	600 V	5.59 mm		0.22 in	0.25 in	Black	Free Hanging (In-Line)	Brass	115 °C	-40 °C	Nylon Polyamide (PA)	Crimp	Gold	Weathertight	Backshell	Plastic	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.65
		10	$ 7.67
		25	$ 7.38
		50	$ 7.08
		100	$ 6.92

Description

General part information

8380-4SG Series

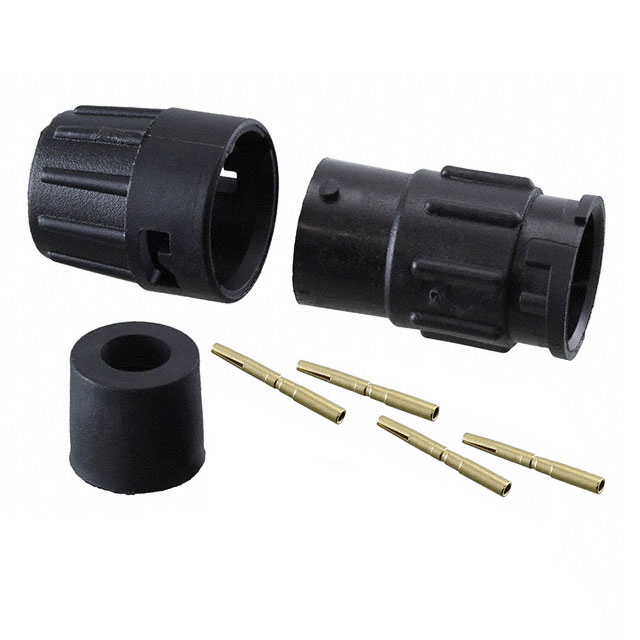

4 Position Circular Connector Receptacle, Female Sockets Crimp
