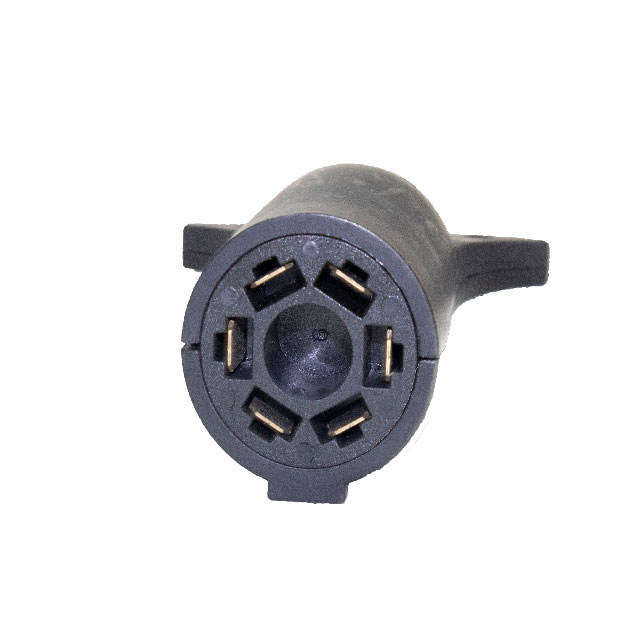

TCAW-76A-W

Active

Switch Components

CONN ADAPTER 7P-6P F-M INLINE

Search across all available documentation for this part.

Active

Switch Components

CONN ADAPTER 7P-6P F-M INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	TCAW-76A-W

Connector Style	Standard
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Male Pins
Fastening Type	Push-Pull
Features	Cap (Cover)
Housing Color	Black
Housing Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	7
Number of Positions (Convert To)	6
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shielding	Unshielded

Part	Fastening Type	Housing Color	Shielding	Mounting Type	Convert From (Adapter End)	Number of Positions (Convert To)	Number of Positions (Convert From)	Connector Style	Convert To (Adapter End)	Housing Material	Orientation (Convert From)	Orientation (Convert To)	Features	Color
Switch Components TCAW-75	Push-Pull	Black	Unshielded	Free Hanging (In-Line)	Female Sockets	5	7	Standard	Male Pins	Polyamide (PA) Nylon
Switch Components TCAW-76A	Push-Pull	Black	Unshielded	Free Hanging (In-Line)	Female Sockets	6	7	Standard	Male Pins	Polyamide (PA) Nylon	Keyed	Keyed
Switch Components TCAW-76A-W	Push-Pull	Black	Unshielded	Free Hanging (In-Line)	Female Sockets	6	7	Standard	Male Pins	Polyamide (PA) Nylon	Keyed	Keyed	Cap (Cover)
Switch Components TCAW-74					7 Pos Circular Connector Male Pins									Black
Switch Components TCAW-75-W	Push-Pull	Black	Unshielded	Free Hanging (In-Line)	Female Sockets	5	7	Standard	Male Pins	Polyamide (PA) Nylon			Cap (Cover)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.57

General part information

Circular Connector Standard 7/6 Female Sockets/Male Pins Free Hanging (In-Line)
