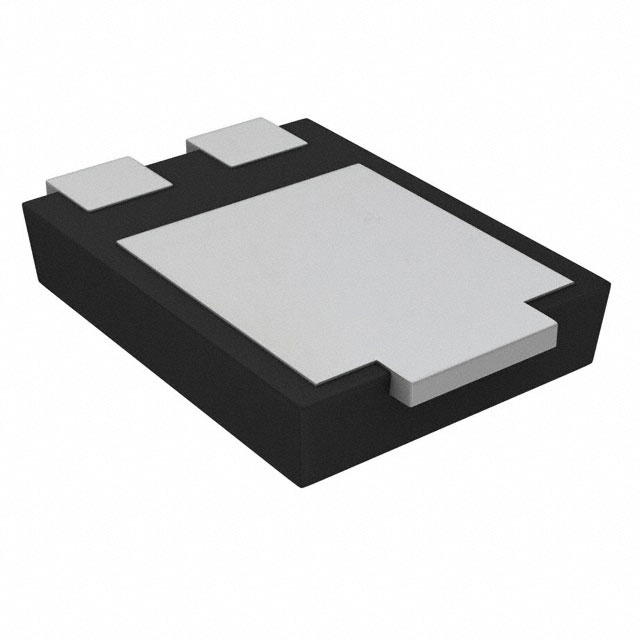

SVT1560VB_R2_00001
ActivePanjit International Inc.
DIODE SCHOTTKY 60V 15A TO277B
Deep-Dive with AI
Search across all available documentation for this part.
SVT1560VB_R2_00001
ActivePanjit International Inc.
DIODE SCHOTTKY 60V 15A TO277B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SVT1560VB_R2_00001 |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage @ Vr | 250 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | 3-PowerDFN, TO-277 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-277B |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 510 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.19 | |
| 10 | $ 0.75 | |||
| 100 | $ 0.49 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.35 | |||
| 2000 | $ 0.32 | |||
| Digi-Reel® | 1 | $ 1.19 | ||
| 10 | $ 0.75 | |||
| 100 | $ 0.49 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.35 | |||
| 2000 | $ 0.32 | |||
| Tape & Reel (TR) | 5000 | $ 0.28 | ||
| 10000 | $ 0.26 | |||
| 15000 | $ 0.26 | |||
Description
General part information
SVT1560 Series
Diode 60 V 15A Surface Mount TO-277B
Documents
Technical documentation and resources
No documents available
