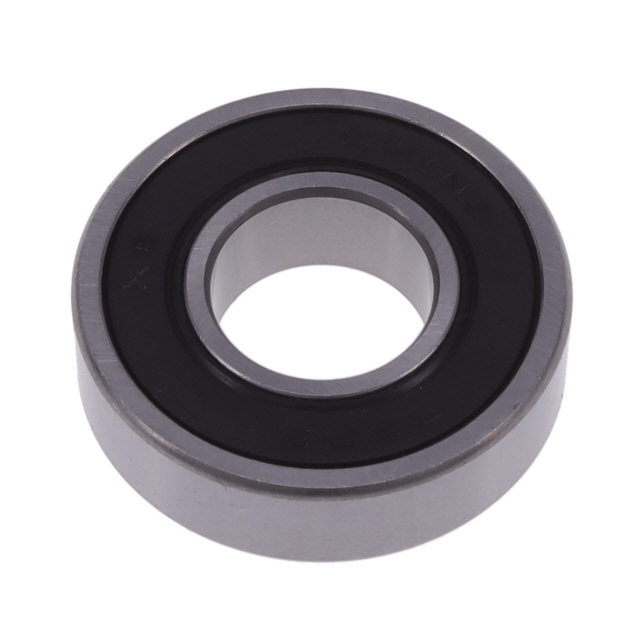

R8-2RS-XE
ActiveMechatronics Bearing Group
BALL BEARING 0.5X0.125X0.3125"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R8-2RS-XE
ActiveMechatronics Bearing Group
BALL BEARING 0.5X0.125X0.3125"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R8-2RS-XE |
|---|---|
| Dynamic Load Rating | 885 lbs |
| Features | Contact Seal (2) |
| Inner Diameter | 12.7 mm |
| Inner Diameter | 0.5 in |
| Inner Diameter | 0.5 in |
| Material | Bearing Steel |
| Outer Diameter [diameter] | 28.58 mm |
| Outer Diameter [diameter] | 1.125 in |
| Static Load Rating | 500 lbs |
| Type | Ball Bearing |
| Width | 7.94 mm |
| Width | 0.3125 in |
| Width | 0.313 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.39 | |
| 10 | $ 1.79 | |||
| 100 | $ 1.40 | |||
| 1000 | $ 1.20 | |||
| 5000 | $ 1.06 | |||
Description
General part information
R8-2RS-X Series
Ball Bearing 0.500" (12.70mm) 1/2" ID X 1.125" (28.58mm) OD X 0.313" (7.94mm) 5/16" W
