0152670276

Active

Molex

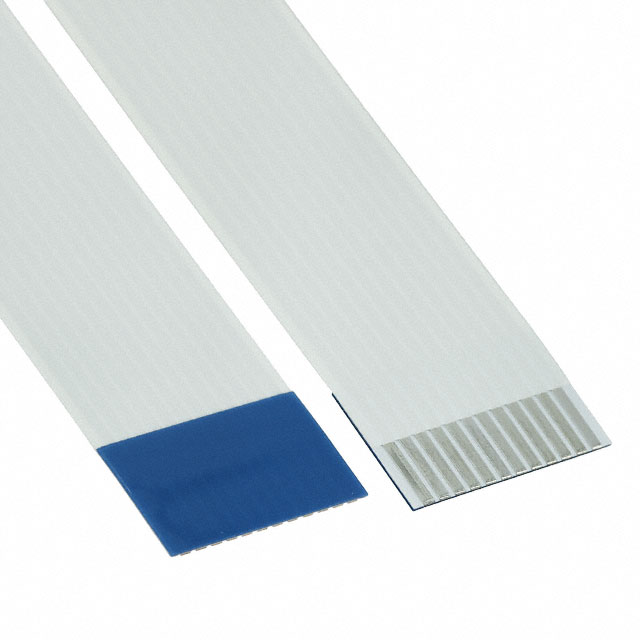

CABLE FFC/FPC 12POS 1MM 5"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 12POS 1MM 5"

Technical Specifications

Parameters and characteristics for this part

Specification	0152670276

Cable Type	FPC, FFC
Length	5 in
Length	127 mm
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Number of Conductors	12
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Top on One Side, Bottom on Other, Backers on Both Sides

1.00mm Pitch Premo-Flex FFC Jumper, Opposite Side Contacts (Type D), 178.00mm Cable Length, Tin (Sn) Plating, 30 Circuits

...

Part	Number of Conductors	Length	Length	Cable Type	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Length [x]
Molex 0152670456	28	177.8 mm	7 in	FFC FPC	0.039 in	1 mm	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides
Molex 0152670221	6	304.8 mm		FFC FPC	0.039 in	1 mm	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	12 in
Molex 0152671050	33	304.8 mm		FFC FPC	0.039 in	1 mm	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	12 in
Molex 0152670884	19	127 mm	5 in	FFC FPC	0.039 in	1 mm	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides
Molex 0152670276	12	127 mm	5 in	FFC FPC	0.039 in	1 mm	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides
Molex 0152670725	5	50.8 mm	2 in	FFC FPC	0.039 in	1 mm	4 mm	0.157 in	Backers on Both Sides Top on Both Sides
Molex 0152670232	8	127 mm	5 in	FFC FPC	0.039 in	1 mm	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides
Molex 0152670379	22	50.8 mm	2 in	FFC FPC	0.039 in	1 mm	4 mm	0.157 in	Backers on Both Sides Top on Both Sides
Molex 0152670984	27	304.8 mm		FFC FPC	0.039 in	1 mm	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	12 in
Molex 0152670408	24	127 mm	5 in	FFC FPC	0.039 in	1 mm	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.00mm Pitch Premo-Flex FFC Jumper, Opposite Side Contacts (Type D), 178.00mm Cable Length, Tin (Sn) Plating, 30 Circuits
