126-02300
ActiveHELLERMANNTYTON

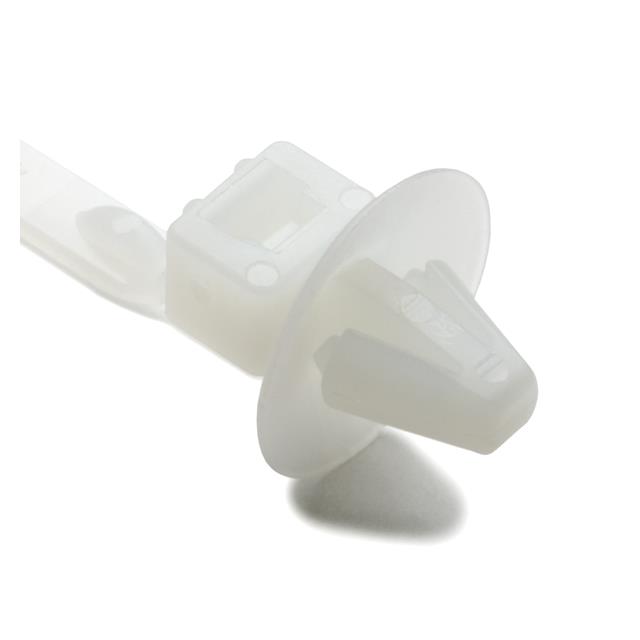

CBL TIE LOCKING NAT 50LBS 6.7"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
126-02300
ActiveHELLERMANNTYTON
CBL TIE LOCKING NAT 50LBS 6.7"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 126-02300 |
|---|---|
| Bundle Diameter | 31 mm |
| Bundle Diameter | 1.22 in |
| Color | Natural |
| Length - Actual | 0.558 ' |
| Length - Actual | 6.7 " |
| Length - Actual | 170.08 mm |
| Length - Approximate | 6.75 in |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Cupped Arrowhead, Push Mount |
| Tensile Strength | 22.68 kg |
| Tensile Strength | 50 lbs |
| Width [y] | 0.181 in |
| Width [y] | 4.6 mm |
| Wire/Cable Tie Type | Standard, Locking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.14 | |
| 2000 | $ 0.13 | |||
| 3000 | $ 0.12 | |||
| 5000 | $ 0.12 | |||
| 7000 | $ 0.11 | |||
| 10000 | $ 0.11 | |||
| 25000 | $ 0.10 | |||
| 50000 | $ 0.09 | |||
| 100000 | $ 0.09 | |||
Description
General part information
126-02 Series
Standard, Locking Natural 1.22" (31.00mm) 0.181" (4.60mm) 50 lbs (22.68 kg)
Documents
Technical documentation and resources
