367003-D01

Active

Qualtek

CORD CEE 7/7RA - IEC320-C13 8.2'

Search across all available documentation for this part.

Active

Qualtek

CORD CEE 7/7RA - IEC320-C13 8.2'

Technical Specifications

Parameters and characteristics for this part

Specification	367003-D01

1st Connector	CEE 7/7, Right Angle
Approval Agency Marking	DEMKO, KEMA, OVE, NF, SEMKO, NEMKO, CEBEC, VDE, FIMKO, CB
Approved Countries	Americas, France, Australia, Netherlands, Austria, Germany, Belgium, Sweden, Europe, Finland, Africa, Norway, Denmark, Asia
Color	Black
Cord Type	H05VV-F
Current Rating (Amps)	10 A
Length [x]	8.2 '
Length [x]	2.5 m
Number of Conductors	3
Operating Temperature	70 °C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	250 VAC
Wire Gauge	17 AWG

Part	Number of Conductors	Style	Operating Temperature	Wire Gauge	Voltage Rating	Length [x]	Length [x]	Approval Agency Marking	Color	Approved Countries	1st Connector	Shielding	Current Rating (Amps)	Cord Type
Qualtek 367003-D01	3	Female Sockets Male Pins	70 °C	17 AWG	250 VAC	8.2 '	2.5 m	CB CEBEC DEMKO FIMKO KEMA NEMKO NF OVE SEMKO VDE	Black	Africa Americas Asia Australia Austria Belgium Denmark Europe Finland France Germany Netherlands Norway Sweden	CEE 7/7 Right Angle	Unshielded	10 A	H05VV-F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

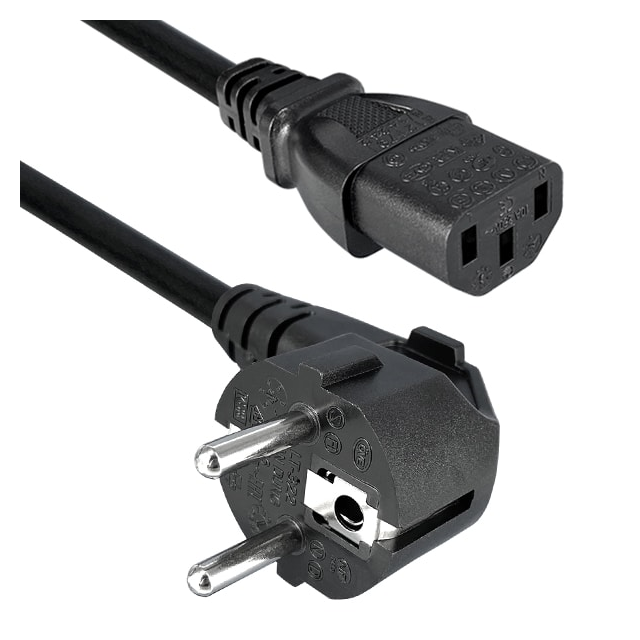

8.20' (2.50m) Power Cord Black CEE 7/7, Right Angle To IEC 320-C13 H05VV-F
