126-00069

Active

HELLERMANNTYTON

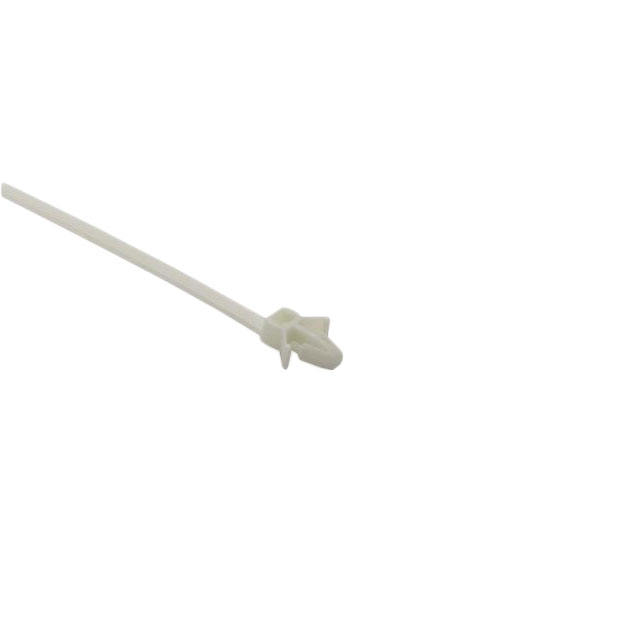

CBL TIE LOCKING NAT 50LBS 6.3"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

126-00069

Active

HELLERMANNTYTON

CBL TIE LOCKING NAT 50LBS 6.3"

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	126-00069

Bundle Diameter	1.38 in
Bundle Diameter	35 mm
Color	Natural
Length - Actual [x]	160 mm
Length - Actual [x]	0.525 '
Length - Actual [x]	6.3 "
Length - Approximate [x]	6.25 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Push Mount, Winged Arrowhead
Tensile Strength	22.68 kg
Tensile Strength	50 lbs
Width [x]	4.7 mm
Width [x]	0.185 in
Wire/Cable Tie Type	Standard, Locking

126-00 Series

Part	Length - Actual	Length - Actual	Length - Actual	Width [y]	Width [y]	Tensile Strength	Tensile Strength	Length - Approximate [x]	Material	Bundle Diameter	Bundle Diameter	Color	Wire/Cable Tie Type	Mounting Type	Features	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Approximate	Width [x]	Width [x]
HELLERMANNTYTON 126-00426	0.509 ft	155 mm	6.1 in	0.181 in	4.6 mm	22.68 kg	50 lbs	6 in	Polyamide (PA66) Nylon 6/6	1.38 in	35 mm	Black	Locking Standard	Edge Clip	Heat Stabilized
HELLERMANNTYTON 126-00081				0.181 in	4.6 mm	18.14 kg	40 lbs	6.25 in	Polyamide (PA66) Nylon 6/6	1.38 in	35 mm	Black	Locking Standard	Cupped Arrowhead Push Mount	Heat Stabilized	156.5 mm	0.513 ft	6.16 in
HELLERMANNTYTON 126-00005				0.181 in	4.6 mm	22.68 kg	50 lbs		Polyamide (PA66) Nylon 6/6			Black	Locking Standard	Push Mount Winged Arrowhead	Heat Stabilized Impact Modified	163 mm	0.535 '	6.42 "	34 mm	1.34 in	6.5 in
HELLERMANNTYTON 126-00045						22.68 kg	50 lbs	6.25 in	Polyamide (PA66) Nylon 6/6	1.38 in	35 mm	Black	Locking Standard	Arrowhead Push Mount		159 mm	0.522 ft	6.26 in				4.7 mm	0.185 in
HELLERMANNTYTON 126-00046						22.68 kg	50 lbs	6.25 in	Polyamide (PA66) Nylon 6/6	1.38 in	35 mm	Black	Locking Standard	Arrowhead Push Mount		159 mm	0.522 ft	6.26 in				4.7 mm	0.185 in
HELLERMANNTYTON 126-00069						22.68 kg	50 lbs	6.25 in	Polyamide (PA66) Nylon 6/6	1.38 in	35 mm	Natural	Locking Standard	Push Mount Winged Arrowhead		160 mm	0.525 '	6.3 "				4.7 mm	0.185 in
HELLERMANNTYTON 126-00065				0.181 in	4.6 mm	18.14 kg	40 lbs		Polyamide (PA66) Nylon 6/6	1.38 in	35 mm	Natural	Locking Standard	Cupped Arrowhead Push Mount	Heat Stabilized	163 mm	0.535 '	6.42 "			6.5 in
HELLERMANNTYTON 126-00044						22.68 kg	50 lbs	6.25 in	Polyamide (PA66) Nylon 6/6	1.38 in	35 mm	Natural	Locking Standard	Arrowhead Push Mount		159 mm	0.522 ft	6.26 in				4.7 mm	0.185 in
HELLERMANNTYTON 126-00062
HELLERMANNTYTON 126-00099				0.181 in	4.6 mm	18.14 kg	40 lbs	6.25 in	Polyamide (PA66) Nylon 6/6	1.38 in	35 mm	Black	Locking Standard	Cupped Arrowhead Push Mount	Heat Stabilized	156 mm	0.512 '	6.14 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.32
