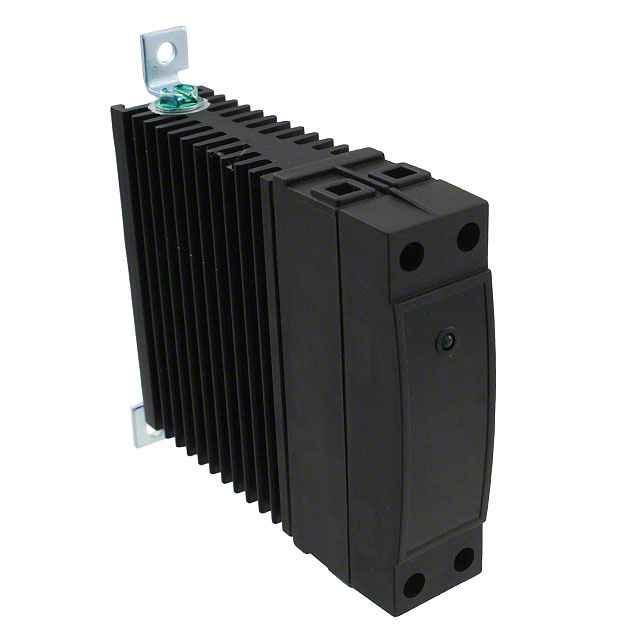

CKRD2430-10

Active

Sensata-Crydom

SSR RELAY SPST-NO 30A 24-280V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 30A 24-280V

Technical Specifications

Parameters and characteristics for this part

Specification	CKRD2430-10

Approval Agency	TUV, CSA, UR, CE
Load Current	30 A
Mounting Type	DIN Rail
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC
Package / Case	SSR with Integrated Heat Sink
Termination Style	Screw Terminal
Voltage - Input [Max]	32 V
Voltage - Input [Min]	4 V
Voltage - Load [Max]	280 V
Voltage - Load [Min]	24 V

Part	Termination Style	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Approval Agency	Load Current	Output Type
Sensata-Crydom CKRD2430-10	Screw Terminal	DIN Rail	24 V	280 V	-40 °C	80 C	32 V	4 V	SSR with Integrated Heat Sink	CE CSA TUV UR	30 A	AC
Sensata-Crydom CKRD2430	Screw Terminal	DIN Rail	24 V	280 V	-40 °C	80 C	32 V	4 V	SSR with Integrated Heat Sink	CE CSA TUV UR	30 A	AC Zero Cross
Sensata-Crydom CKRD2430P-10	Screw Terminal	DIN Rail	24 V	280 V	-40 °C	80 C	32 V	4 V	SSR with Integrated Heat Sink	CE CSA TUV UR	30 A	AC
