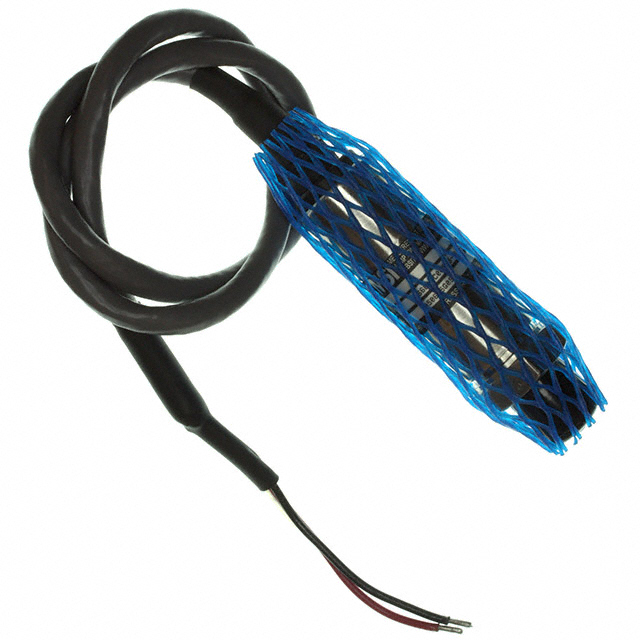

US681-C00005-015PA

Obsolete

TE Connectivity Measurement Specialties

SENSOR 15PSIA 1/4NPT 4-20MA 2'

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 15PSIA 1/4NPT 4-20MA 2'

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Features	Port Style	Accuracy	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Output Type	Applications	Output [Max]	Output [Min]	Operating Pressure [custom]	Operating Pressure [custom]	Operating Pressure	Operating Pressure
TE Connectivity Measurement Specialties US681-C00005-015PG	Cable	Amplified Output	Threaded	0.1 %	-50 °C	125 °C	Cylinder	30 VDC	10 VDC	Vented Gauge	310.26 kPa	45 PSI	NPT	0.25 "	6.35 mm	Male	Analog Current	Industrial Automation	20 mA	4 mA	15 PSI	103.42 kPa
TE Connectivity Measurement Specialties US681-C00005-015PA	Cable	Amplified Output	Threaded	0.1 %	-50 °C	125 °C	Cylinder	30 VDC	10 VDC		310.26 kPa	45 PSI	NPT	0.25 "	6.35 mm	Male	Analog Current	Industrial Automation	20 mA	4 mA	15 PSI	103.42 kPa
TE Connectivity Measurement Specialties US681-C00005-100PG	Cable	Amplified Output	Threaded	0.1 %	-50 °C	125 °C	Cylinder	30 VDC	10 VDC	Vented Gauge	2068.43 kPa	300 PSI	NPT	0.25 "	6.35 mm	Male	Analog Current	Industrial Automation	20 mA	4 mA			689.48 kPa	100 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SENSOR 15PSIA 1/4NPT 4-20MA 2'
