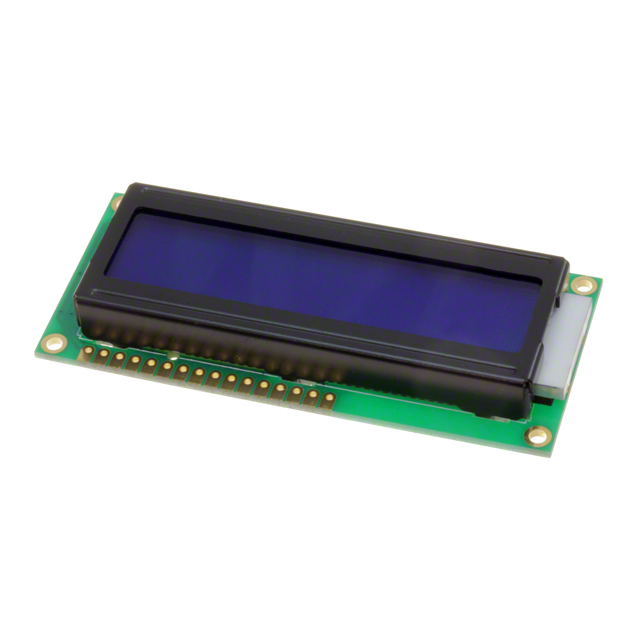

MOP-AL162A-BBTW-25J-3IN

Active

Matrix Orbital

LCD MOD 32DIG 16X2 TRANSMISV WHT

Search across all available documentation for this part.

Active

Matrix Orbital

LCD MOD 32DIG 16X2 TRANSMISV WHT

Technical Specifications

Parameters and characteristics for this part

Part	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Dot Size [x]	Dot Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Display Format [y]	Display Format [x]	Number of Characters	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Interface	Character Format [y]	Character Format [x]	Display Mode	Backlight	Character Size [y]	Character Size [z]	Viewing Area [x]	Viewing Area [y]	Text Color	Background Color
Matrix Orbital MOP-AL162A-BBTW-25J-3IN	14 mm	36 mm	80 mm	0.55 mm	0.65 mm	-20 C	70 °C	2	16	32	4.5 V	5.5 V	Alphanumeric	Parallel 8-Bit	8 Dots	5 Dots	Transmissive	LED - White	2.95 mm	5.55 mm	64.5 mm	15.5 mm
Matrix Orbital MOP-AL162A-BBTW-25E-3IN	14 mm	36 mm	80 mm			-20 C	70 °C	2	16	32	4.5 V	5.5 V	Alphanumeric	I2C RS-232 TTL	8 Dots	5 Dots	Transmissive		2.95 mm	5.55 mm	64.5 mm	15.5 mm	White	Blue
Matrix Orbital MOP-AL162A-BGFW-25E-3IN	14 mm	36 mm	80 mm			-20 C	70 °C	2	16	32	4.5 V	5.5 V	Alphanumeric	I2C RS-232 TTL	8 Dots	5 Dots	Transflective		2.95 mm	5.55 mm	64.5 mm	15.5 mm	Blue	Gray/White
Matrix Orbital MOP-AL162A-BBTR-25E-3IN	14 mm	36 mm	80 mm			-20 C	70 °C	2	16	32	4.5 V	5.5 V	Alphanumeric	I2C RS-232 TTL	8 Dots	5 Dots	Transmissive		2.95 mm	5.55 mm	64.5 mm	15.5 mm	Red	Black
Matrix Orbital MOP-AL162A-BYFY-25J-3IN	14 mm	36 mm	80 mm	0.55 mm	0.65 mm	-20 C	70 °C	2	16	32	4.5 V	5.5 V	Alphanumeric	Parallel 8-Bit	8 Dots	5 Dots	Transflective		2.95 mm	5.55 mm	64.5 mm	15.5 mm
Matrix Orbital MOP-AL162A-BTTY-25E-3IN	14 mm	36 mm	80 mm			-20 C	70 °C	2	16	32	4.5 V	5.5 V	Alphanumeric	I2C RS-232 TTL	8 Dots	5 Dots	Transmissive		2.95 mm	5.55 mm	64.5 mm	15.5 mm	Yellow/Green	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transmissive 5 x 8 Dots Alphanumeric LED - White Parallel, 8-Bit 80.00mm x 36.00mm x 14.00mm
