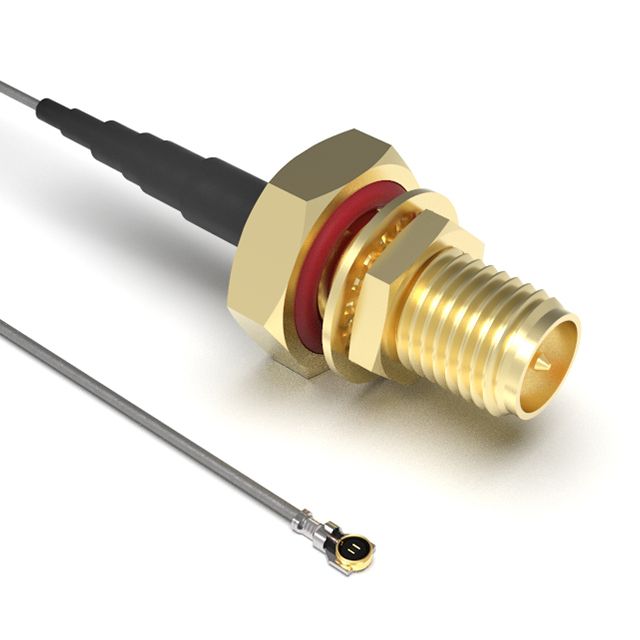

CAB430RF-0200-A-1
ActiveGCT
CBL ASSY RPSMA-MHF5L J-PL 7.874"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CAB430RF-0200-A-1
ActiveGCT
CBL ASSY RPSMA-MHF5L J-PL 7.874"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CAB430RF-0200-A-1 |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | IPEX MHF5L Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 1.13mm OD Coaxial Cable |
| Color | Gray |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 6000 MHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length | 7.874 in |
| Length | 200 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to IPEX MHF5L |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.31 | |
| 10 | $ 9.14 | |||
| 25 | $ 8.79 | |||
| 50 | $ 8.43 | |||
| 100 | $ 8.25 | |||
Description
General part information
CAB430RF Series
Cable Assembly Coaxial RP-SMA to IPEX MHF5L 1.13mm OD Coaxial Cable 7.874" (200.00mm)
