060-0287-07G

Active

Honeywell Sensing and Productivity Solutions T&M

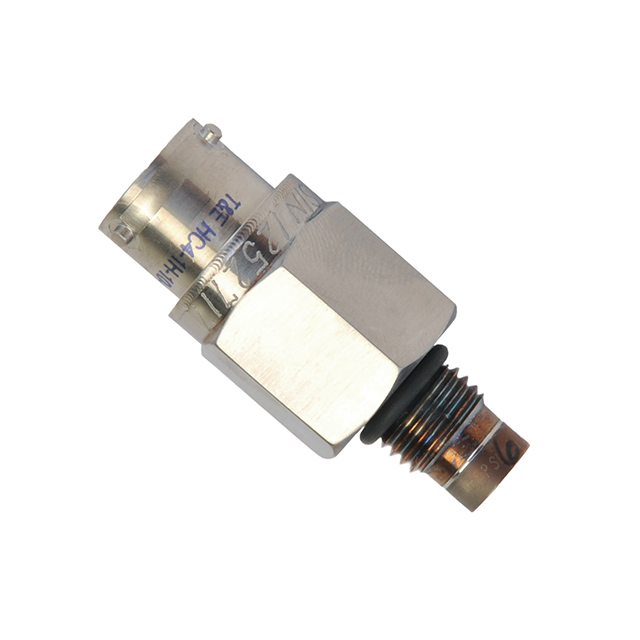

PRESSURE TRANSDUCER 200 PSIG

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions T&M

PRESSURE TRANSDUCER 200 PSIG

Technical Specifications

Parameters and characteristics for this part

Part	Port Style	Output Type	Accuracy	Output [Max]	Operating Pressure [x]	Operating Pressure [x]	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Pressure Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Port Size	Port Size	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions T&M 060-0287-17G	Threaded	Wheatstone Bridge	0.5 %	10 mV	20684.27 kPa	3000 PSI	Cylinder	4500 PSI	31026.41 kPa	Vented Gauge	Industrial Automation	149 °C	-54 °C	Male UNF	0.4375 " 11.11 mm
Honeywell Sensing and Productivity Solutions T&M 060-0287-07G	Threaded	Wheatstone Bridge	0.5 %	10 mV			Cylinder	300 PSI	2068.43 kPa	Vented Gauge	Industrial Automation	149 °C	-54 °C	Male UNF	0.4375 " 11.11 mm	1378.95 kPa	200 PSI
Honeywell Sensing and Productivity Solutions T&M 060-0287-13G	Threaded	Wheatstone Bridge	0.5 %	10 mV			Cylinder			Vented Gauge	Industrial Automation	149 °C	-54 °C	Male UNF	0.4375 " 11.11 mm	6894.76 kPa	1000 PSI	1500 PSI	10342.14 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1237.50

General part information

PRESSURE TRANSDUCER 200 PSIG

Technical documentation and resources

No documents available
