Q8F3CXXHR110E

Active

APEM

LED INDICATOR 8MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

LED INDICATOR 8MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	Q8F3CXXHR110E

Current	6 mA
Ingress Protection	IP67
Lamp Color	Red
Lens Color	Red
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Transparency	Diffused
Millicandela Rating	980 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Viewing Angle	100 °
Voltage	110 V

Part	Type	Termination Style	Lens Transparency	Voltage	Lamp Color	Millicandela Rating	Lens Size	Lens Size	Ratings	Panel Cutout Shape	Lens Color	Viewing Angle	Current	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Ingress Protection
APEM Q8F3CXXHR110E	LED	Wire Leads - 7.87" (200.00mm)	Diffused	110 V	Red	980 mcd	T-1 3/4	5 mm	AC	Round	Red	100 °	6 mA	0.31 in	7.87 mm	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

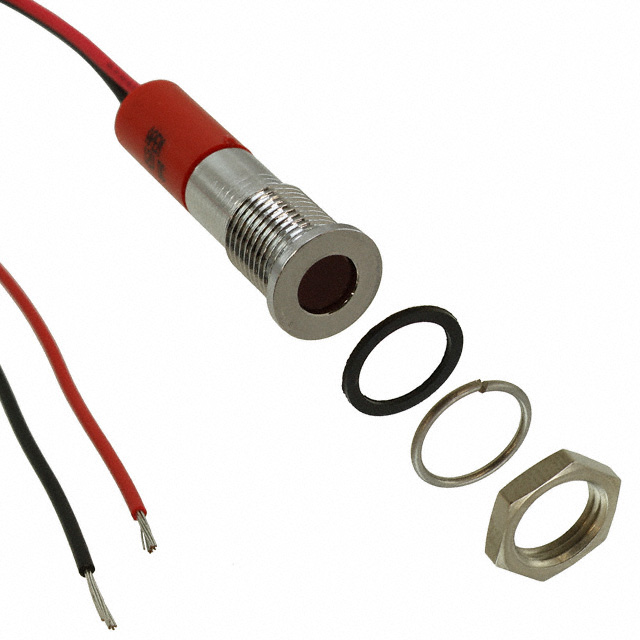

LED Panel Indicator Red Diffused 100° 110V 6mA Wire Leads - 7.87" (200.00mm)
