0039000181-08-R0-D

Active

Molex

8" PRE-CRIMP A2040 RED

Search across all available documentation for this part.

Active

Molex

8" PRE-CRIMP A2040 RED

Technical Specifications

Parameters and characteristics for this part

...

Part	Contact End	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Contact Finish	Color	Length [x]	Length	Number of Conductors	Length	Length [x]
Molex 0039000181-03-R4	Socket to Cable (Round)	1	0.76 Ám	30 Áin	24 AWG	Gold	Red	3 in	76.2 mm	1
Molex 0039000181-08-R9	Socket to Cable (Round)	1	0.76 Ám	30 Áin	18 AWG	Gold	Red		203.2 mm	1	8 in
Molex 0039000181-11-G9	Socket to Cable (Round)	1	0.76 Ám	30 Áin	18 AWG	Gold	Green	11 in		1		279.4 mm
Molex 0039000181-06-L4	Socket to Cable (Round)	1	0.76 Ám	30 Áin	24 AWG	Gold	Blue		152.4 mm	1	6 in
Molex 0039000181-08-R0-D	Socket to Socket	1	0.76 Ám	30 Áin	20 AWG	Gold	Red		203.2 mm	1	8 in
Molex 0039000181-10-B2-D	Socket to Socket	1	0.76 Ám	30 Áin	22 AWG	Gold	Black	10 in	254 mm	1
Molex 0039000181-12-G9	Socket to Cable (Round)	1	0.76 Ám	30 Áin	18 AWG	Gold	Green	12 in	304.8 mm	1
Molex 0039000181-03-V0	Socket to Cable (Round)	1	0.76 Ám	30 Áin	20 AWG	Gold	Violet	3 in	76.2 mm	1
Molex 0039000181-02-A9	Socket to Cable (Round)	1	0.76 Ám	30 Áin	18 AWG	Gold				1
Molex 0039000181-10-V4-D	Socket to Socket	1	0.76 Ám	30 Áin	24 AWG	Gold	Violet	10 in	254 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

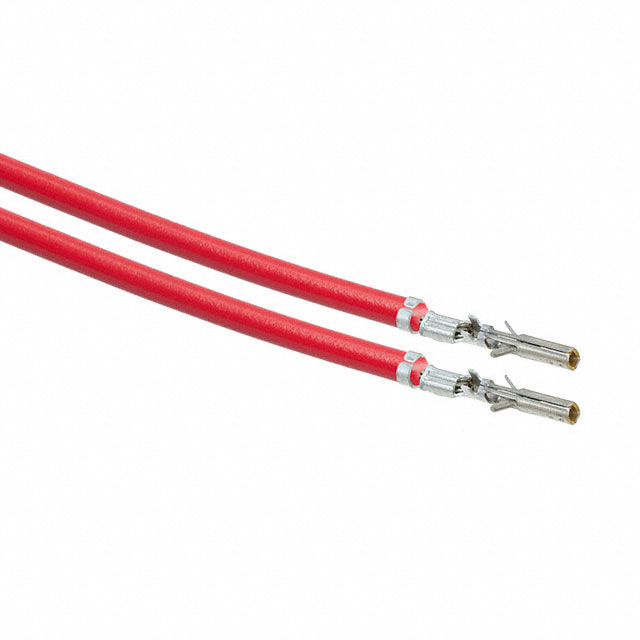

Red 20 AWG Jumper Lead Socket to Socket Gold 8.00" (203.20mm)

Technical documentation and resources
