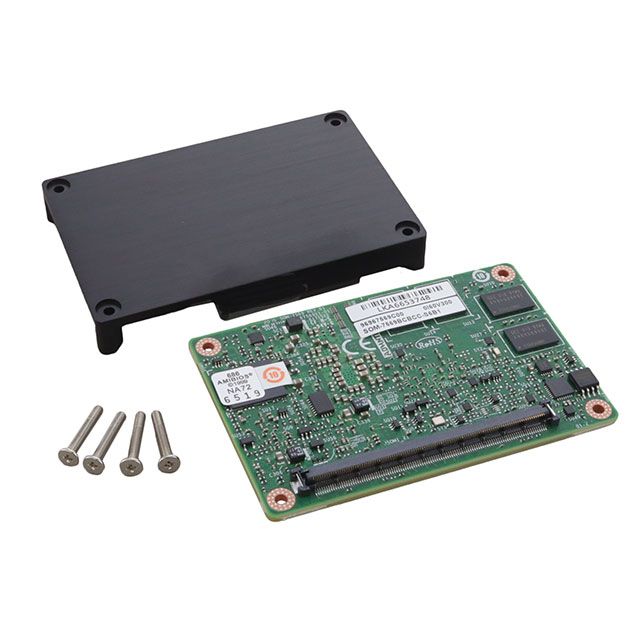

SOM-7569BCBCC-S6B1
ObsoleteAdvantech Corp
SBC 1.6GHZ 4 CORE 4GB/4GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
SOM-7569BCBCC-S6B1
ObsoleteAdvantech Corp
SBC 1.6GHZ 4 CORE 4GB/4GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SOM-7569BCBCC-S6B1 |
|---|---|
| Cooling Type | Fan |
| Core Processor | Intel Atom x7-E3950 |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | SMBus, I2C, LPC, PCIe, HD-A |
| Form Factor | COM Express R2.1 Mini Module, Type 10 |
| Number of Cores | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 12 W |
| RS-232 (422, 485) | 0 |
| Size / Dimension [x] | 84.07 mm |
| Size / Dimension [x] | 3.31 " |
| Size / Dimension [y] | 2.17 in |
| Size / Dimension [y] | 55.12 mm |
| Speed | 1.6 GHz |
| Storage Interface | SATA 2.0 (2) |
| USB | USB 3.0 (2), USB 2.0 (8) |
| Video Outputs | DVI, HDMI, LCD, DP, LVDS, DD |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SOM-7569 Series
Single Board Computer 1.6GHz 4 Core 4GB/4GB RAM Intel Atom x7-E3950
