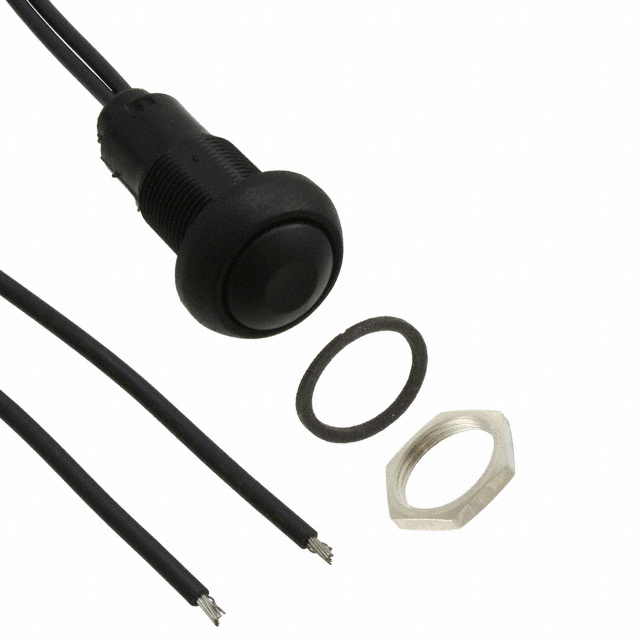

ILR3FAD2

Active

APEM

SWITCH PUSHBUTTON SPST-NO 2A 24V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSHBUTTON SPST-NO 2A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	ILR3FAD2

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - DC	24 V

Part	Actuator Marking	Type	Illumination Voltage (Nominal)	Termination Style	Mounting Type	Electrical Life	Voltage Rating - DC	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Switch Function	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Illumination Type, Color	Circuit	Ingress Protection
APEM ILR3FAD2L0G	No Marking	Illuminated Standard	2.1 VDC	Wire Leads	Panel Mount Front	200000 Cycles	24 V	Epoxy Sealed Terminals	85 °C	-40 °C	Black	Off-Mom	2 A	Button Domed Round	13.6 mm	1000000 Cycles	Green LED	SPST-NO	IP67 - Dust Tight Waterproof
APEM ILR3FAD2	No Marking	Standard		Wire Leads	Panel Mount Front	200000 Cycles	24 V	Epoxy Sealed Terminals	85 °C	-40 °C	Black	Off-Mom	2 A	Button Domed Round	13.6 mm	1000000 Cycles		SPST-NO	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
