RB66P06C16B
ActiveSerpac
BOX PLAS BLK/CLR 6.3"L X 6.3"W
Deep-Dive with AI
Search across all available documentation for this part.
RB66P06C16B
ActiveSerpac
BOX PLAS BLK/CLR 6.3"L X 6.3"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RB66P06C16B |
|---|---|
| Color | Black, Clear Cover/Door |
| Container Type | Box |
| Design | Cover Included |
| Height [z] | 68.58 mm |
| Height [z] | 2.7 in |
| Material | Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Ratings | IP67, NEMA 4 |
| Size / Dimension [x] | 160.02 mm |
| Size / Dimension [x] | 6.3 " |
| Size / Dimension [y] | 6.3 " |
| Size / Dimension [y] | 160.02 mm |
| Thickness | 0.12 in |
| Thickness | 3.05 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.37 | |
| 5 | $ 17.17 | |||
| 10 | $ 16.45 | |||
| 25 | $ 15.93 | |||
| 50 | $ 15.71 | |||
| 100 | $ 15.58 | |||
| 250 | $ 15.49 | |||
| 500 | $ 15.45 | |||
Description
General part information
RB66P06C Series

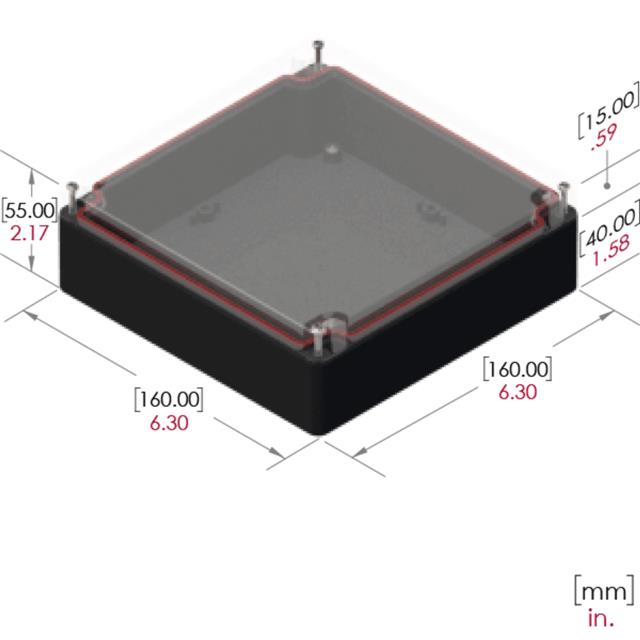

Box Plastic, Polycarbonate Black, Clear Cover/Door Cover Included 6.300" L x 6.300" W (160.02mm x 160.02mm) X 2.700" (68.58mm)
Documents
Technical documentation and resources
No documents available
