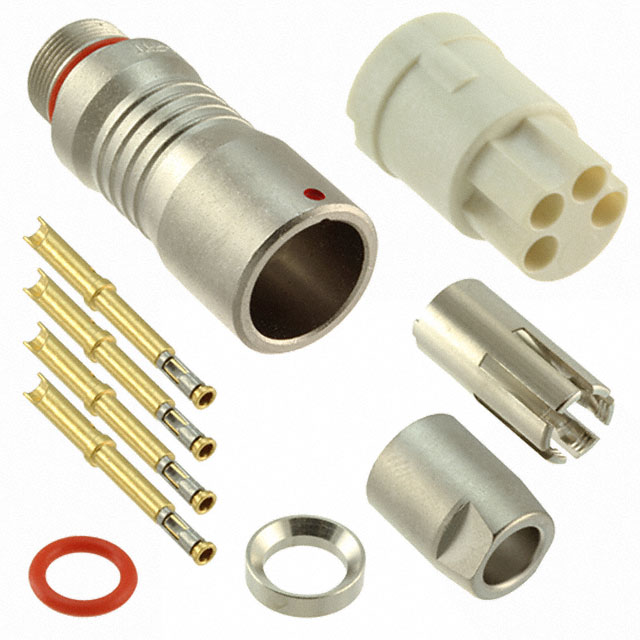

HS2L4F20C

Active

Switchcraft Inc.

CIRCULAR PUSH PULL CONNECTORS CABLE-TO-CABLE 4 POS FEMALE CABLE SIZE C

Search across all available documentation for this part.

Active

Switchcraft Inc.

CIRCULAR PUSH PULL CONNECTORS CABLE-TO-CABLE 4 POS FEMALE CABLE SIZE C

Technical Specifications

Parameters and characteristics for this part

Specification	HS2L4F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

Circular Push Pull Connectors Cable-to-Cable 3Pos Female Cable Size A

Part	Shell Material	Applications	Primary Material	Mounting Type	Contact Finish - Mating	Ingress Protection	Termination	Contact Material	Orientation	Voltage Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shielding	Number of Positions	Insert Material	Shell Finish	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Material Flammability Rating	Fastening Type	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Switchcraft Inc. HS2L4F20C	Copper Alloy	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Free Hanging (In-Line)	Gold	IP66 IP67 IP68	Crimp Solder Cup	Copper Alloy	Keyed	125 VAC	Silver	135 °C	-40 °C	Receptacle Female Sockets	Shielded	4	Liquid Crystal Polymer (LCP)	Electroless Nickel	5.49 mm	4.57 mm	0.18 in	0.216 in	UL94 HF-1	Push-Pull
Switchcraft Inc. HS2L3F20A	Copper Alloy	Agriculture Audio General Medical Testing Equipment & Measurement	Metal	Free Hanging (In-Line)	Gold	IP66 IP67 IP68	Crimp Solder Cup	Copper Alloy	Keyed	125 VAC	Silver	135 °C	-40 °C	Receptacle Female Sockets	Shielded		Liquid Crystal Polymer (LCP)	Electroless Nickel						Push-Pull	9.5 A	0.106 in	0.142 in	2.7 mm	3.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Push Pull Connectors Cable-to-Cable 3Pos Female Cable Size A
