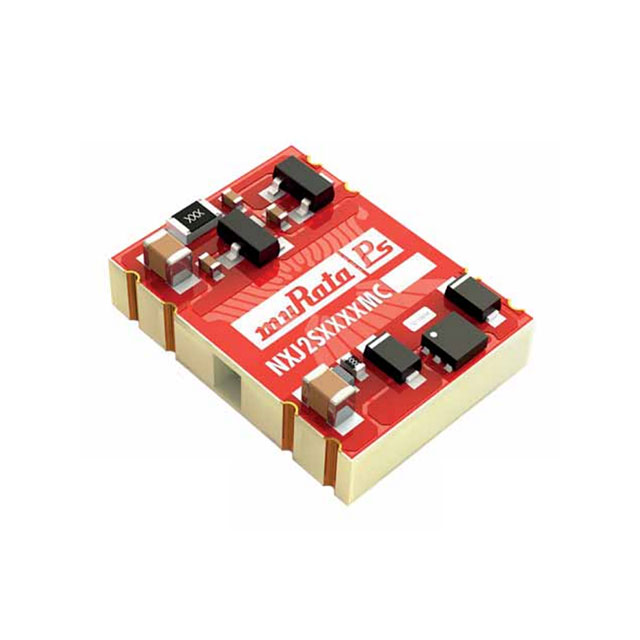

NXJ2S2405MC-R13

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 1:1, 2 W, 1 OUTPUT, 5 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 1:1, 2 W, 1 OUTPUT, 5 V

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Efficiency	Package / Case	Package / Case	Applications	Power (Watts)	Type	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Max) [Max]
Murata Power Solutions Inc. NXJ2S2405MC-R13	1	400 mA	85 °C	-40 °C	21.6 V	Surface Mount	0.57 in	4.4 mm	16 mm	0.17 in	0.63 "	14.5 mm	SCP	76.5 %	8 Leads	12-SMD Module	ITE (Commercial) Medical	2 W	Isolated Module	5.2 kV	5 V	26.4 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	600	$ 4.48
Newark	Each (Supplied on Cut Tape)	500	$ 6.13
		1000	$ 5.77

General part information

Isolated Module DC DC Converter 1 Output 5V 400mA 21.6V - 26.4V Input
