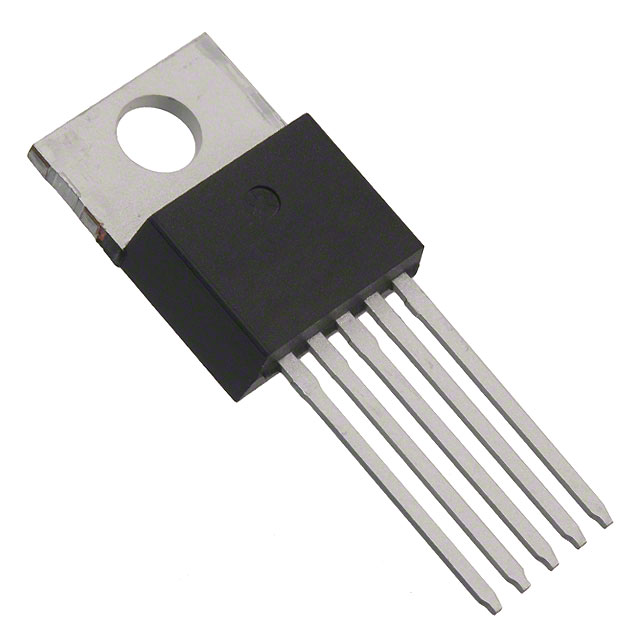

SPX29152U5-L

Obsolete

MaxLinear, Inc.

IC REG LIN POS ADJ 1.5A TO220-5

Search across all available documentation for this part.

Obsolete

MaxLinear, Inc.

IC REG LIN POS ADJ 1.5A TO220-5

Technical Specifications

Parameters and characteristics for this part

Specification	SPX29152U5-L

Control Features	Enable
Current - Output	1.5 A
Mounting Type	Through Hole
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	TO-220-5
Protection Features	Transient Voltage, Over Current, Reverse Polarity
Supplier Device Package	TO-220-5
Voltage - Input (Max) [Max]	16 V
Voltage - Output (Max)	15.4 V
Voltage - Output (Min/Fixed)	1.25 V
Voltage Dropout (Max) [Max]	0.6 V

Part	Number of Regulators	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Protection Features	Voltage - Output (Max)	Mounting Type	Package / Case	Control Features	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]	Current - Output	Supplier Device Package	Output Configuration
MaxLinear, Inc. SPX29152U5-L	1	Adjustable	125 °C	-40 °C	16 V	Over Current Reverse Polarity Transient Voltage	15.4 V	Through Hole	TO-220-5	Enable	1.25 V	0.6 V	1.5 A	TO-220-5	Positive
MaxLinear, Inc. SPX29152T5-L/TR	1	Adjustable	125 °C	-40 °C	16 V	Over Current Reverse Polarity Transient Voltage	15.4 V	Surface Mount	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Enable	1.25 V	0.6 V	1.5 A	TO-263-5	Positive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A TO-220-5

Technical documentation and resources

No documents available
