A00-108-222-450
ActiveEDAC Inc.

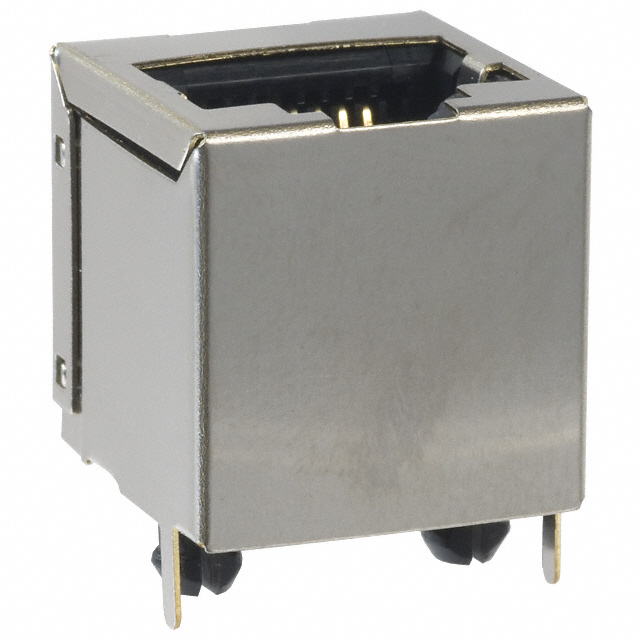

CONN MOD JACK 8P8C VERT SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsInterconnect Solutions Brochure
A00-108-222-450
ActiveEDAC Inc.
CONN MOD JACK 8P8C VERT SHIELDED
Deep-Dive with AI
DocumentsInterconnect Solutions Brochure
Technical Specifications
Parameters and characteristics for this part
| Specification | A00-108-222-450 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyester, Polybutylene Terephthalate (PBT) |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Orientation | Vertical |
| Ratings | Cat5 |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.29 | |
| 10 | $ 1.99 | |||
| 25 | $ 1.91 | |||
| 40 | $ 1.87 | |||
| 140 | $ 1.78 | |||
| 280 | $ 1.61 | |||
| 560 | $ 1.48 | |||
| 980 | $ 1.27 | |||
| 2520 | $ 1.19 | |||
Description
General part information
A00-108 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded Cat5
