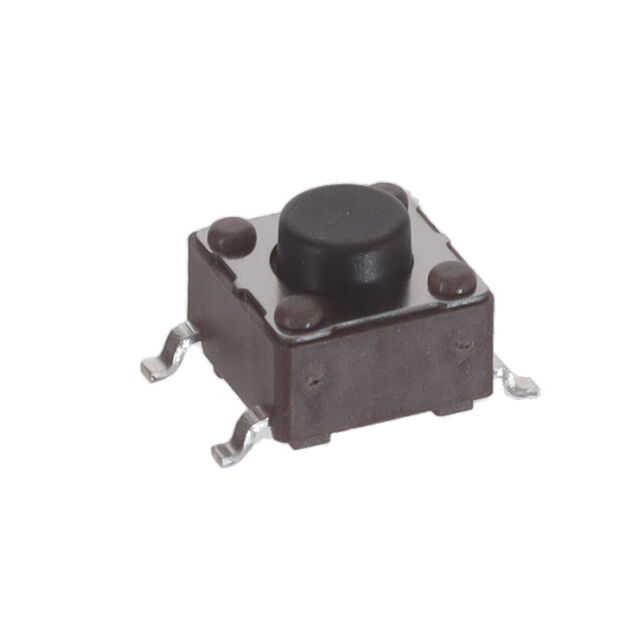

ADTSM62KVTR

Active

APEM

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ADTSM62KVTR

Active

APEM

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADTSM62KVTR

Actuator Height off PCB, Vertical	5 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

ADTSM6 Series

Part	Actuator Material	Contact Rating @ Voltage	Illumination	Actuator Orientation	Actuator Height off PCB, Vertical	Actuator Type	Termination Style	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mounting Type	Features	Operating Force	Switch Travel	Switch Function	Actuator Height off PCB, Vertical [z]
APEM ADTSM65SV	Nylon Polyamide (PA)	0.05 A 12 VDC	Non-Illuminated	Top Actuated	9.5 mm	Standard	Gull Wing	6.2 mm	6.2 mm	70 °C	-25 °C	SPST-NO	Surface Mount	Tactile Feedback	320 gf	0.25 mm	Off-Mom
APEM ADTSM61NV	Nylon Polyamide (PA)	0.05 A 12 VDC	Non-Illuminated	Top Actuated		Standard	Gull Wing	6.2 mm	6.2 mm	70 °C	-25 °C	SPST-NO	Surface Mount	Tactile Feedback		0.25 mm	Off-Mom	4.3 mm
APEM ADTSM62NVTR	Nylon Polyamide (PA)	0.05 A 12 VDC	Non-Illuminated	Top Actuated	5 mm	Standard	Gull Wing	6.2 mm	6.2 mm	70 °C	-25 °C	SPST-NO	Surface Mount	Tactile Feedback		0.25 mm	Off-Mom
APEM ADTSM62RSVTR	Nylon Polyamide (PA)	0.05 A 12 VDC	Non-Illuminated	Top Actuated	5 mm	Standard	Gull Wing	6.2 mm	6.2 mm	70 °C	-25 °C	SPST-NO	Surface Mount	Tactile Feedback	260 gf	0.25 mm	Off-Mom
APEM ADTSM62KSVTR	Nylon Polyamide (PA)	0.05 A 12 VDC	Non-Illuminated	Top Actuated	5 mm	Standard	Gull Wing	6.2 mm	6.2 mm	70 °C	-25 °C	SPST-NO	Surface Mount	Tactile Feedback	100 gf	0.25 mm	Off-Mom
APEM ADTSM62KVTR	Nylon Polyamide (PA)	0.05 A 12 VDC	Non-Illuminated	Top Actuated	5 mm	Standard	Gull Wing	6.2 mm	6.2 mm	70 °C	-25 °C	SPST-NO	Surface Mount	Tactile Feedback	100 gf	0.25 mm	Off-Mom
APEM ADTSM644SV	Nylon Polyamide (PA)	0.05 A 12 VDC	Non-Illuminated	Top Actuated		Plunger for Cap	Gull Wing	6.2 mm	6.2 mm	70 °C	-25 °C	SPST-NO	Surface Mount	Tactile Feedback	320 gf	0.25 mm	Off-Mom	7.3 mm
APEM ADTSM648YVTR	Nylon Polyamide (PA)	0.05 A 12 VDC	Non-Illuminated	Top Actuated		Plunger for Cap	Gull Wing	6.2 mm	6.2 mm	70 °C	-25 °C	SPST-NO	Surface Mount	Tactile Feedback	520 gf	0.25 mm	Off-Mom	7.3 mm
APEM ADTSM61KVTR	Nylon Polyamide (PA)	0.05 A 12 VDC	Non-Illuminated	Top Actuated		Standard	Gull Wing	6.2 mm	6.2 mm	70 °C	-25 °C	SPST-NO	Surface Mount	Tactile Feedback	100 gf	0.25 mm	Off-Mom	4.3 mm
APEM ADTSM66RV	Nylon Polyamide (PA)	0.05 A 12 VDC	Non-Illuminated	Top Actuated		Standard	Gull Wing	6.2 mm	6.2 mm	70 °C	-25 °C	SPST-NO	Surface Mount	Tactile Feedback	260 gf	0.25 mm	Off-Mom	13 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
		10	$ 0.39
		25	$ 0.36
		100	$ 0.32
		250	$ 0.30
	Digi-Reel®	1	$ 0.45
		10	$ 0.39
		25	$ 0.36
		100	$ 0.32
		250	$ 0.30
	Tape & Reel (TR)	900	$ 0.27
		1800	$ 0.25
		2700	$ 0.25
		4500	$ 0.24
		6300	$ 0.23
		9000	$ 0.22
		22500	$ 0.21
		45000	$ 0.20
Newark	Each	1000	$ 0.48
		2500	$ 0.45

Description

General part information

ADTSM6 Series

Tactile Switch SPST-NO Top Actuated Surface Mount
