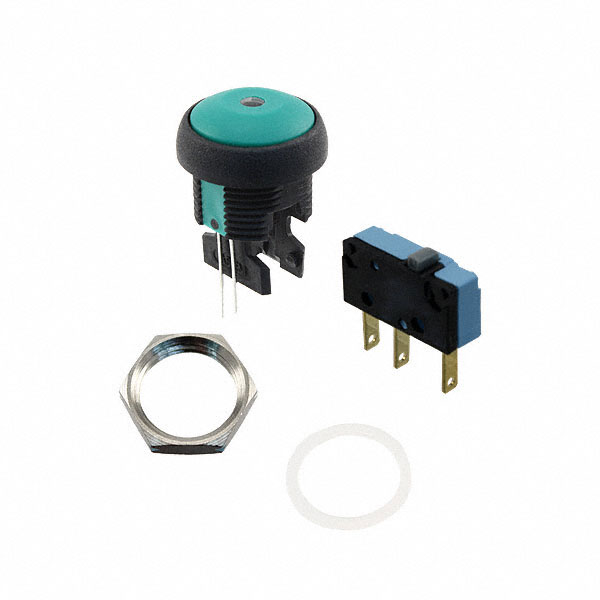

IRR7Z232L0G

Active

APEM

SWITCH PUSHBUTTON SPDT 5A 250V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSHBUTTON SPDT 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	IRR7Z232L0G

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Illuminated, Standard
Voltage Rating - AC	250 V

Part	Features	Mechanical Life	Mounting Type	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Actuator Marking	Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Electrical Life	Illumination Type, Color	Actuator Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Termination Style
APEM IRR7Z232L0G	Tactile Feedback	1000000 Cycles	Panel Mount Front	250 V	On-Mom	5 A	SPDT	2 VDC	No Marking	Illuminated Standard	85 °C	-20 C	IP67 - Dust Tight Waterproof	50000 Cycles	Green LED	Button Round	16.2 mm	Green	Quick Connect - 0.110" (2.8mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	40	$ 44.27

General part information

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
