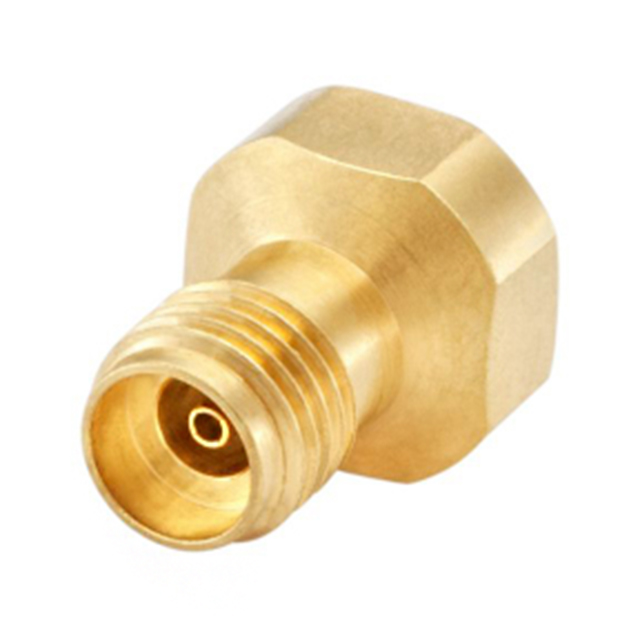

02K17R-001D3
ActiveRosenberger
RF/MICROWAVE TERMINATION, 0MHZ MIN, 40000MHZ MAX, 50OHM, ROHS COMPLIANT PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02K17R-001D3
ActiveRosenberger
RF/MICROWAVE TERMINATION, 0MHZ MIN, 40000MHZ MAX, 50OHM, ROHS COMPLIANT PACKAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 02K17R-001D3 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Connector Style | 2.92 mm |
| Connector Type | Female Socket, Jack |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 5 | $ 389.05 | |
Description
General part information
02K17R Series
Terminator Coax Connector Jack, Female Socket 2.92mm 50 Ohms
