2700130

Phoenix Contact

OPTICAL ELEMENT CLEAR LED FLASH

Search across all available documentation for this part.

Phoenix Contact

OPTICAL ELEMENT CLEAR LED FLASH

Technical Specifications

Parameters and characteristics for this part

Specification	2700130

Function - Lighting	Flashing
Ingress Protection	IP65 - Dust Tight, Water Resistant
Light Color	Clear
Number of Stacks	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Type	Optical Element
Voltage - Supply	24 VDC
Weight	78.02 g
Weight	0.172 lb

Part	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Supply	Number of Stacks	Function - Lighting	Light Color	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Lamp Type	Features	Function - Audible
Phoenix Contact 2700163	42.18 g	0.093 lb	-20 C	60 °C	Mounting Base
Phoenix Contact 2700125			-20 C	50 °C	Optical Element	24 VAC	1	Rotating	Yellow	IP65 - Dust Tight Water Resistant
Phoenix Contact 2700100	55.34 g	0.122 lb	-20 C	60 °C	Optical Element		1	Steady		IP65 - Dust Tight Water Resistant	240 VAC	12 VAC	Not Included
Phoenix Contact 2700127	58.06 g	0.128 lb	-20 C	50 °C	Optical Element	24 VAC	1	Steady	Clear	IP65 - Dust Tight Water Resistant
Phoenix Contact 2700142	1.36 g	0.003 lb	-30 ░C	60 °C	Bulb	24 VDC							Incandescent
Phoenix Contact 2700140	184.16 g	0.406 lb	-20 C	50 °C	Acoustic Element	24 VDC	1			IP65 - Dust Tight Water Resistant				Adjustable Volume	Voice Output
Phoenix Contact 2700152	20.41 g	0.045 lb	-20 C	60 °C	Tube
Phoenix Contact 2700128	58.97 g	0.13 lbs	-20 C	50 °C	Optical Element	24 VAC	1	Flashing	Clear	IP65 - Dust Tight Water Resistant
Phoenix Contact 2700130	78.02 g	0.172 lb	-20 C	50 °C	Optical Element	24 VDC	1	Flashing	Clear	IP65 - Dust Tight Water Resistant
Phoenix Contact 2700137	122.02 g	0.269 lb	-20 C	50 °C	Acoustic Element	24 VDC	1			IP65 - Dust Tight Water Resistant				Automatic Volume Control	Pulse

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 381.91

General part information

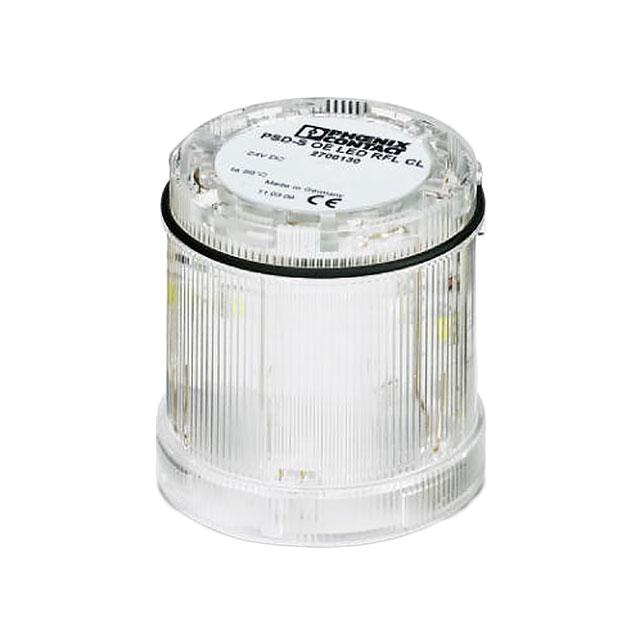

Stack Light Optical Element Clear LED
