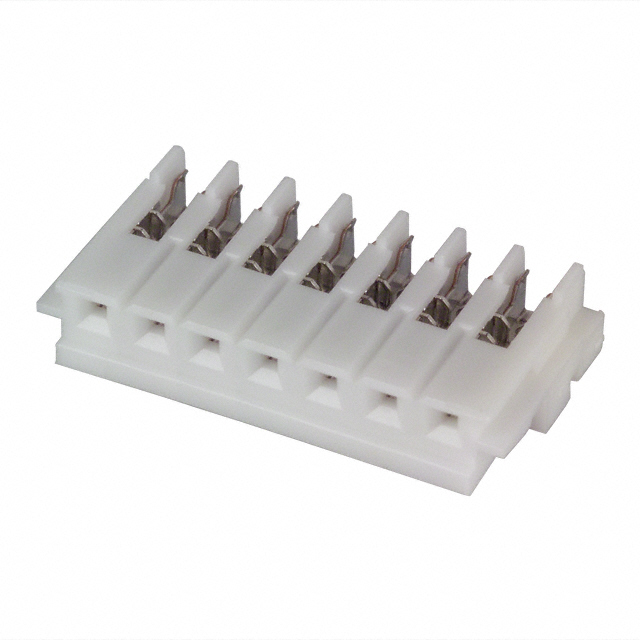

07HR-6S-P-N
ActiveJST Sales America Inc.
CONN RCPT 7POS IDC 26AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsJST Prefix Suffix Chart
07HR-6S-P-N
ActiveJST Sales America Inc.
CONN RCPT 7POS IDC 26AWG TIN
Deep-Dive with AI
DocumentsJST Prefix Suffix Chart
Technical Specifications
Parameters and characteristics for this part
| Specification | 07HR-6S-P-N |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Fastening Type | Detent Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Wire Gauge | 26 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 0.27 | |
Description
General part information
07HR Series
7 Position Rectangular Receptacle Connector IDC Tin 26 AWG
Documents
Technical documentation and resources
