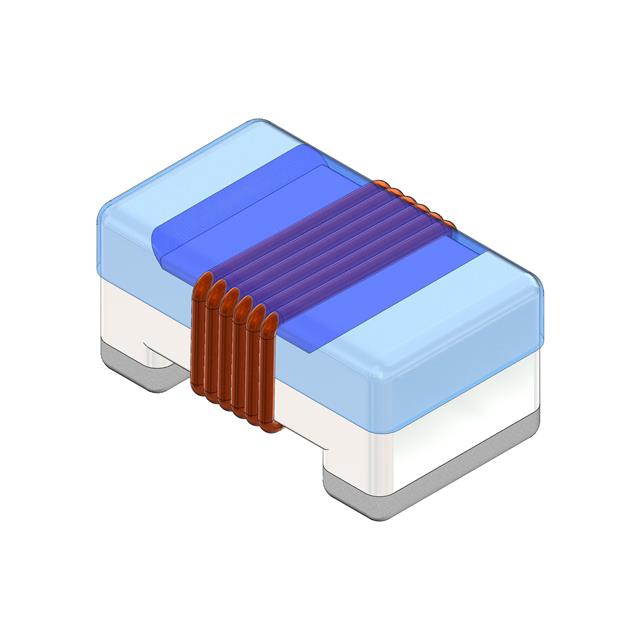

WCI1005CP7N5GDG
ActiveINPAQ Technology Co., Ltd
CHIP IND 1005,7.5NH,G,22Q,0.68A,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WCI1005CP7N5GDG
ActiveINPAQ Technology Co., Ltd
CHIP IND 1005,7.5NH,G,22Q,0.68A,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WCI1005CP7N5GDG |
|---|---|
| Current Rating (Amps) | 0.68 A |
| DC Resistance (DCR) | 100 mOhm |
| Frequency - Self Resonant | 4.8 GHz |
| Height - Seated (Max) [Max] | 0.66 mm |
| Height - Seated (Max) [Max] | 0.026 in |
| Inductance | 7.5 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 0402 (1005 Metric) |
| Q @ Freq | 900 MHz, 60 |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.047 in, 1.19 mm |
| Size / Dimension [y] | 0.025 in, 0.64 mm |
| Supplier Device Package | 0402 |
| Tolerance | 2 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.06 | |||
| 100 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.06 | |||
| 100 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 4000 | $ 0.03 | ||
| 8000 | $ 0.03 | |||
| 12000 | $ 0.03 | |||
| 20000 | $ 0.03 | |||
| 28000 | $ 0.03 | |||
| 40000 | $ 0.03 | |||
| 100000 | $ 0.03 | |||
| 200000 | $ 0.03 | |||
| 400000 | $ 0.02 | |||
Description
General part information
WCI1005CP7N5GDG
7.5 nH Unshielded Wirewound Inductor 680 mA 100mOhm Max 0402 (1005 Metric)
