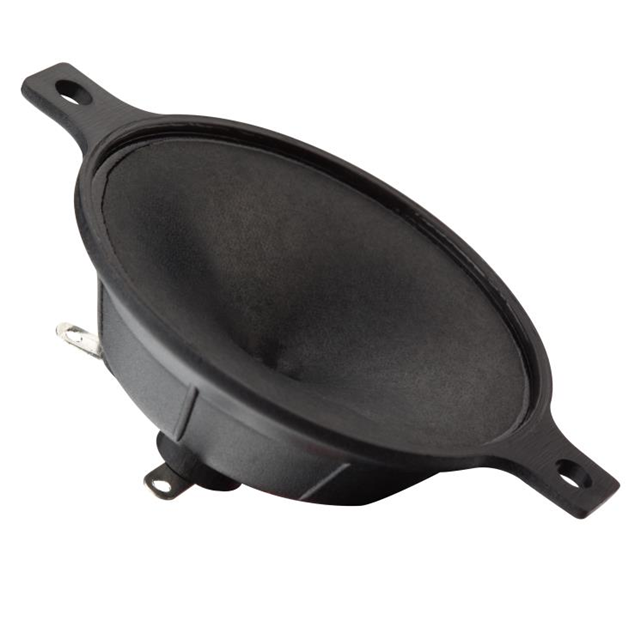

W-03A
ActiveEast Electronics
BUZZER 2.83V 70MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W-03A
ActiveEast Electronics
BUZZER 2.83V 70MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W-03A |
|---|---|
| Height - Seated (Max) [Max] | 18.5 mm |
| Height - Seated (Max) [Max] | 0.728 in |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 70 mm |
| Size / Dimension [diameter] | 2.756 in |
| Sound Pressure Level (SPL) | 95 dB |
| Termination | PC Pins |
| Voltage - Rated | 2.83 V |
| Voltage Range [Max] | 8 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.96 | |
| 100 | $ 1.95 | |||
| 1000 | $ 1.60 | |||
Description
General part information
W-03 Series
Buzzers 2.83 V 20kHz, 40kHz 95dB @ 2.83V, 50cm Through Hole PC Pins
