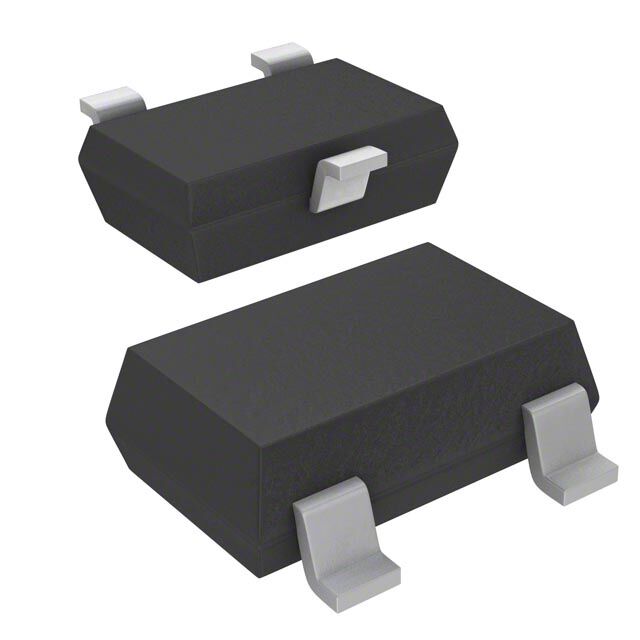

A1260LLHLX-T
ActiveAllegro MicroSystems
MAGNETIC SWITCH LATCH SOT23W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1260LLHLX-T
ActiveAllegro MicroSystems
MAGNETIC SWITCH LATCH SOT23W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A1260LLHLX-T |
|---|---|
| Current - Output (Max) [Max] | 25 mA |
| Current - Supply (Max) [Max] | 4 mA |
| Function | Latch |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Drain |
| Package / Case | SOT-23W |
| Polarization | South Pole |
| Qualification | AEC-Q100 |
| Sensing Range | 5 mT, -5 mT |
| Supplier Device Package | SOT-23W |
| Technology | Hall Effect |
| Test Condition [Max] | 150 °C |
| Test Condition [Min] | -40 °C |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 30000 | $ 0.60 | |
Description
General part information
A1260 Series
Digital Switch Latch Open Drain Hall Effect SOT-23W
Documents
Technical documentation and resources
