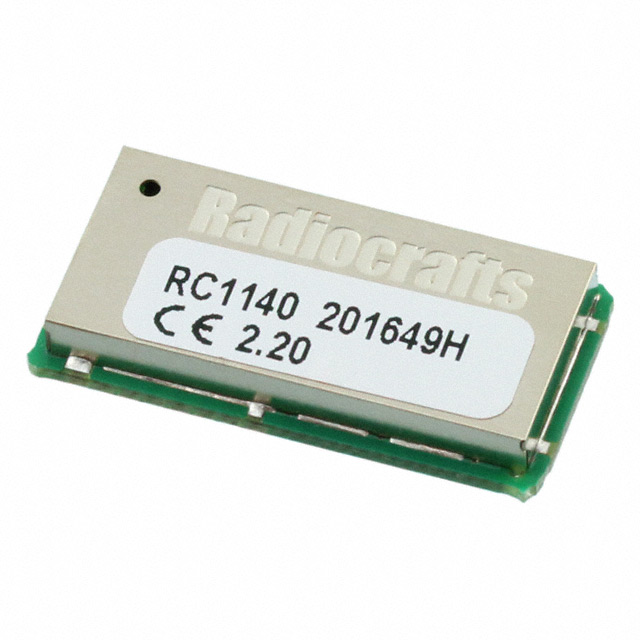

RC1140-RC232

Active

Radiocrafts AS

RF TXRX MOD ISM<1GHZ CAST SMD

Search across all available documentation for this part.

Active

Radiocrafts AS

RF TXRX MOD ISM<1GHZ CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	RC1140-RC232

Antenna Type	Antenna Not Included, Castellation
Current - Receiving	24 mA
Current - Transmitting	35 mA
Data Rate	100 Kbps
Frequency [Max]	434 MHz
Frequency [Min]	433 MHz
Modulation	GFSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	10 dBm
Protocol	RC232
RF Family/Standard	General ISM < 1GHz
Sensitivity	-110 dBm
Serial Interfaces	UART
Utilized IC / Part	CC1110
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2 V

Part	Current - Transmitting	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency [Max]	Frequency [Min]	Package / Case	Mounting Type	Antenna Type	Modulation	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Protocol	RF Family/Standard	Current - Receiving	Power - Output	Sensitivity	Serial Interfaces	Data Rate	Interface	Modulation or Protocol	Applications	Function	Frequency
Radiocrafts AS RC1140-RC232	35 mA	3.6 V	2 V	434 MHz	433 MHz	Module	Surface Mount	Antenna Not Included Castellation	GFSK	85 °C	-40 °C	CC1110	RC232	General ISM < 1GHz	24 mA	10 dBm	-110 dBm	UART	100 Kbps
Radiocrafts AS RC1140-RC232-USB				434 MHz	433 MHz															USB	802.15.4 Zigbee™	General Purpose	Transceiver ZigBee™
Radiocrafts AS RC1140-MBUS3-USB																				USB	802.15.4 Zigbee™	General Purpose	Transceiver ZigBee™	433 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General ISM < 1GHz RC232 Transceiver Module 433MHz ~ 434MHz Antenna Not Included, Castellation Surface Mount
