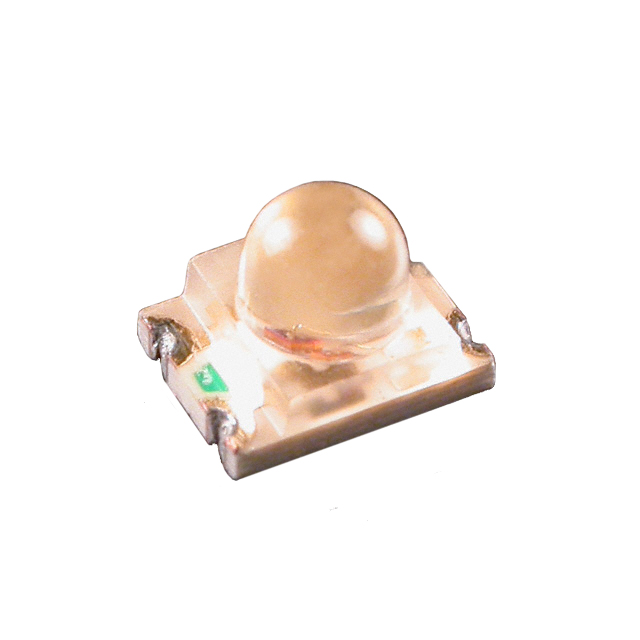

APBD3224LVBDZGKC

Active

Kingbright

LED BLUE/GRN 470NM 525NM 4SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APBD3224LVBDZGKC

Active

Kingbright

LED BLUE/GRN 470NM 525NM 4SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APBD3224LVBDZGKC

Color	Green, Blue
Configuration	Independent
Current - Test [custom]	2 mA
Current - Test [custom]	2 mA
Height (Max) [Max]	2.5 mm
Lens Color	Colorless
Lens Size [diameter]	1.8 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	100 mcd, 250 mcd
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.4 mm
Supplier Device Package	4-SMD
Viewing Angle	20 °
Voltage - Forward (Vf) (Typ)	2.7 V
Wavelength - Dominant	525 nm, 470 nm
Wavelength - Peak	515 nm, 465 nm

APBD3224 Series

Part	Package / Case	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant	Viewing Angle	Height (Max) [Max]	Mounting Type	Current - Test	Lens Size [diameter]	Configuration	Lens Style	Millicandela Rating	Lens Color	Color	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Package / Case	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Dominant [custom]	Wavelength - Peak [custom]	Current - Test [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
Kingbright APBD3224SURKCGKC-F01	4-SMD No Lead	574 nm 645 nm	2.4 mm	3.2 mm	Clear	2.1 V	1.95 V	570 nm 630 nm	20 °	2.4 mm	Surface Mount	20 mA 20 mA	1.8 mm	Independent	Round with Domed Top	280 mcd 400 mcd	Colorless	Green Red	Chip LED
Kingbright APBD3224LVBDSYKJ3C		465 nm 590 nm	2.4 mm	3.2 mm	Clear			470 nm 590 nm	20 °	2.5 mm	Surface Mount	2 mA 2 mA	1.8 mm	Independent	Round with Domed Top	100 mcd 100 mcd	Colorless	Blue Yellow	4-SMD	1.9 V 2.7 V	1209 3224 Metric
Kingbright APBD3224LSURKQBDC	4-SMD No Lead		2.4 mm	3.2 mm	Clear		1.8 V	465 nm 630 nm	20 °	2.5 mm	Surface Mount		1.8 mm	Independent	Round with Domed Top	30 mcd 40 mcd	Colorless	Blue Red	4-SMD			2.7 V	2 mA	2 mA	460 nm	645 nm
Kingbright APBD3224LQBDCGKC	4-SMD No Lead		2.4 mm	3.2 mm	Clear	1.9 V			20 °	2.5 mm	Surface Mount		1.8 mm	Independent	Round with Domed Top	30 mcd 30 mcd	Colorless	Blue Green	4-SMD			2.7 V	2 mA		460 nm		465 nm 570 nm	574 nm	2 mA
Kingbright APBD3224LVBDZGKC	4-SMD No Lead	465 nm 515 nm	2.4 mm	3.2 mm	Clear			470 nm 525 nm	20 °	2.5 mm	Surface Mount		1.8 mm	Independent	Round with Domed Top	100 mcd 250 mcd	Colorless	Blue Green	4-SMD	2.7 V			2 mA						2 mA
Kingbright APBD3224SYKCGKC-F01	1210	574 nm 590 nm	2.4 mm	3.2 mm	Clear			570 nm 590 nm	20 °	2.4 mm	Surface Mount	20 mA 20 mA	1.8 mm	Independent	Round with Domed Top	280 mcd 800 mcd	Colorless	Green Yellow	SMD	2 V 2.1 V	3225 Metric
Kingbright APBD3224ESGC-F01	1210	565 nm 627 nm	2.4 mm	3.2 mm	Clear			568 nm 617 nm	20 °	2.4 mm	Surface Mount	20 mA 20 mA	1.8 mm	Independent	Round with Domed Top		Colorless	Green Red	SMD	2 V 2.2 V	3225 Metric
Kingbright APBD3224LSYKCGKC		574 nm 590 nm	2.4 mm	3.2 mm	Clear			570 nm 590 nm	20 °	2.5 mm	Surface Mount	2 mA 2 mA	1.8 mm	Independent	Round with Domed Top	30 mcd 35 mcd	Colorless	Green Yellow	4-SMD	1.9 V 1.9 V	1209 3224 Metric
Kingbright APBD3224LSURKCGKC	4-SMD No Lead	574 nm 645 nm	2.4 mm	3.2 mm	Clear			570 nm 630 nm	20 °	2.5 mm	Surface Mount	2 mA 2 mA	1.8 mm	Independent	Round with Domed Top	30 mcd	Colorless	Green Red	4-SMD	1.8 V 1.9 V
Kingbright APBD3224LSURKZGKC		515 nm 645 nm	2.4 mm	3.2 mm	Clear	2.7 V	1.8 V		20 °	2.5 mm	Surface Mount	2 mA 2 mA	1.8 mm	Independent	Round with Domed Top	30 mcd 250 mcd	Colorless	Green Red	4-SMD		1209 3224 Metric									525 nm	630 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APBD3224 Series

Blue, Green 470nm Blue, 525nm Green LED Indication - Discrete 2.7V Blue, 2.7V Green 4-SMD, No Lead
