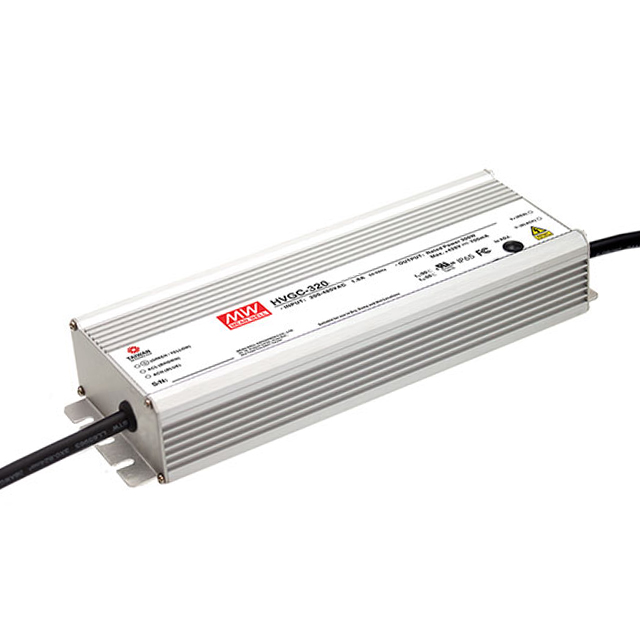

HVGC-320-700B

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 214-428V 700MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HVGC-320-700B

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 214-428V 700MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HVGC-320-700B

Current - Output (Max) [Max]	700 mA
Dimming	Analog, PWM
Efficiency	93.5 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	320 W
Ratings	IP67
Size / Dimension [x]	9.26 in
Size / Dimension [x]	235.2 mm
Size / Dimension [y]	90 mm
Size / Dimension [y]	3.54 in
Size / Dimension [z]	43.8 mm
Size / Dimension [z]	1.72 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max)	528 VAC
Voltage - Input (Min) [Min]	180 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	428 V
Voltage - Output [Min]	214 V

HVGC-320 Series

Part	Ratings	Topology	Features	Approval Agency	Dimming	Voltage - Isolation	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Number of Outputs	Voltage - Input (Max)	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Efficiency	Current - Output (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Termination Style	Current - Output (Max)
MEAN WELL USA Inc. HVGC-320-3500AB	IP65	AC DC Converter	OTP OVP SCP	cURus EAC FCC	Analog PWM	3750 V	180 VAC	300 W	90 °C	-40 °C	UL 8750	1	528 VAC	Constant Current	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	Chassis Mount	93 %	1.05 A	228.6 V	114.3 V	Wire Leads
MEAN WELL USA Inc. HVGC-320-3500B	IP67	AC DC Converter	OTP OVP SCP		Analog PWM	3750 V	180 VAC	320 W	90 °C	-40 °C		1	528 VAC	Constant Current	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	Chassis Mount	93 %	3.5 A	91.4 V	45.7 V	Wire Leads
MEAN WELL USA Inc. HVGC-320-700B	IP67	AC DC Converter	OTP OVP SCP		Analog PWM	3750 V	180 VAC	320 W	90 °C	-40 °C		1	528 VAC	Constant Current	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	Chassis Mount	93.5 %	700 mA	428 V	214 V	Wire Leads
MEAN WELL USA Inc. HVGC-320-700AB	IP65	AC DC Converter	OTP OVP SCP	cURus EAC FCC	Analog PWM	3750 V	180 VAC	300 W	90 °C	-40 °C	UL 8750	1	528 VAC	Constant Current	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	Chassis Mount	93 %	1.05 A	228.6 V	114.3 V	Wire Leads
MEAN WELL USA Inc. HVGC-320-1750AB	IP65	AC DC Converter	OTP OVP SCP	cURus EAC FCC	Analog PWM	3750 V	180 VAC	320 W	90 °C	-40 °C		1	528 VAC	Constant Current	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	Chassis Mount	93.5 %	1.75 A	182.8 V	91.4 V	Wire Leads
MEAN WELL USA Inc. HVGC-320-1750A	IP65	AC DC Converter	OTP OVP SCP			3750 V	180 VAC	320 W	90 °C	-40 °C		1	528 VAC	Constant Current	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	Chassis Mount	93.5 %	1.75 A	182.8 V	91.4 V	Wire Leads
MEAN WELL USA Inc. HVGC-320-1400A	IP65	AC DC Converter	OTP OVP SCP			3750 V	180 VAC	320 W	90 °C	-40 °C		1	528 VAC	Constant Current	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	Chassis Mount	93.5 %	1.4 A	228.6 V	114.3 V	Wire Leads
MEAN WELL USA Inc. HVGC-320-1750B	IP67	AC DC Converter	OTP OVP SCP		Analog PWM	3750 V	180 VAC	320 W	90 °C	-40 °C		1	528 VAC	Constant Current	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	Chassis Mount	93.5 %	1.75 A	182.8 V	91.4 V	Wire Leads
MEAN WELL USA Inc. HVGC-320-1400AB	IP65	AC DC Converter	OTP OVP SCP	cURus EAC FCC	Analog PWM	3750 V	180 VAC	300 W	90 °C	-40 °C	UL 8750	1	528 VAC	Constant Current	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	Chassis Mount	93 %	1.05 A	228.6 V	114.3 V	Wire Leads
MEAN WELL USA Inc. HVGC-320-2800AB	IP65	AC DC Converter	OTP OVP SCP	cURus EAC FCC	Analog PWM	3750 V	180 VAC	320 W	90 °C	-40 °C		1	528 VAC	Constant Current	9.26 in	43.8 mm	90 mm	235.2 mm	3.54 in	1.72 in	Chassis Mount	93.5 %		114.3 V	57 V	Wire Leads	2.8 A
