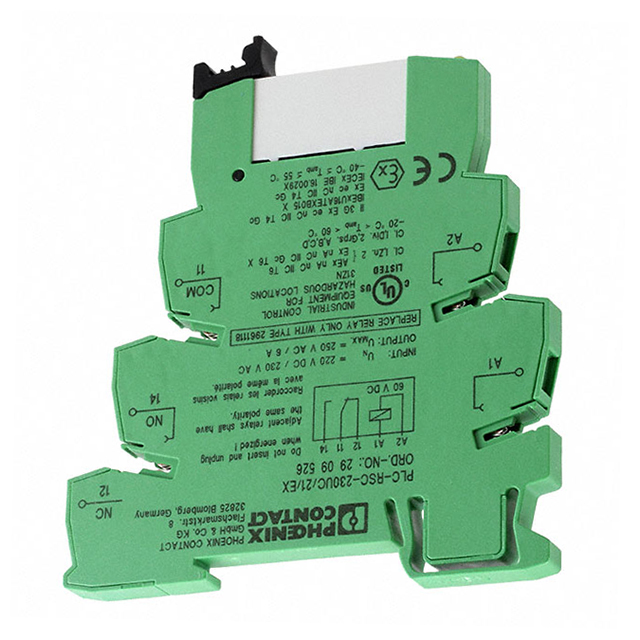

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2909526

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2909526

Approval Agency	UKCA, CE
Coil Current	3.2 mA
Coil Resistance	71.875 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

plc-rsc Series

Industrial Relays PLC-RSC-120UC/21 RELAY PN 651-2961118

Part	Coil Current	Relay Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Release Time	Operate Time	Approval Agency	Coil Type	Termination Style	Contact Rating (Current)	Contact Material	Switching Voltage	Coil Resistance	Contact Form	Coil Voltage
Phoenix Contact 2909517	33 mA	General Purpose	Lighted Indicator Socket Included	-40 °C	60 °C	DIN Rail	10 ms	8 ms	CE UKCA	Non Latching	Screw Terminal	6 A	Silver Nickel (AgNi)	250 VAC 250 VDC	364 Ohms	DPDT (2 Form C)	12 VDC
Phoenix Contact 2909513	33 mA	General Purpose	Lighted Indicator Socket Included	-40 °C	60 °C	DIN Rail	10 ms	8 ms	CE UKCA	Non Latching	Spring Terminal	6 A	Silver Nickel (AgNi)	250 VAC 250 VDC	364 Ohms	DPDT (2 Form C)	12 VDC
Phoenix Contact 2909525	3.5 mA	General Purpose	Lighted Indicator Socket Included	-40 °C	60 °C	DIN Rail	15 ms	6 ms	CE UKCA	Non Latching	Screw Terminal	6 A	Silver Tin Oxide (AgSnO)	250 VAC 250 VDC	34.29 kOhms	SPDT (1 Form C)	120 VAC 120 VDC
Phoenix Contact 2909515	4.5 mA	General Purpose	Lighted Indicator Socket Included	-40 °C	60 °C	DIN Rail	10 ms	7 ms	CE UKCA	Non Latching	Spring Terminal	6 A	Silver Nickel (AgNi)	250 VAC 250 VDC		DPDT (2 Form C)	120 VAC 120 VDC
Phoenix Contact 2966197	3.5 mA	General Purpose	Lighted Indicator Socket Included	-25 °C	55 °C	DIN Rail	15 ms	6 ms	CE UKCA	Non Latching	Screw Terminal	6 A	Silver Tin Oxide (AgSnO)	250 VAC 250 VDC	34.29 kOhms	SPDT (1 Form C)	120 VAC 120 VDC
Phoenix Contact 2966142		General Purpose	Lighted Indicator Socket Included	-40 °C	60 °C	DIN Rail	8 ms	5 ms	CE UKCA	Non Latching	Screw Terminal	6 A	Gold (Au) Silver Tin Oxide (AgSnO)	250 VAC 250 VDC	12.5 kOhms	SPDT (1 Form C)	60 VDC
Phoenix Contact 2966113		General Purpose	Lighted Indicator Socket Included	-25 °C	60 °C	DIN Rail	8 ms	5 ms	CE UKCA	Non Latching	Screw Terminal	6 A	Silver Tin Oxide (AgSnO)	250 VAC 250 VDC		SPDT (1 Form C)	48 VDC
Phoenix Contact 2909532	18 mA	General Purpose	Lighted Indicator Socket Included	-40 °C	60 °C	DIN Rail	10 ms	8 ms	CE UKCA	Non Latching	Spring Terminal	10 A	Silver Nickel (AgNi)	250 VAC 250 VDC	1333 Ohms	SPDT (1 Form C)	24 VDC
Phoenix Contact 2909526	3.2 mA	General Purpose	Lighted Indicator Socket Included	-40 °C	55 °C	DIN Rail	15 ms	7 ms	CE UKCA	Non Latching	Screw Terminal	6 A	Silver Tin Oxide (AgSnO)	250 VAC 250 VDC	71.875 kOhms	SPDT (1 Form C)	230 VAC
Phoenix Contact 2909534	4.5 mA	General Purpose	Lighted Indicator Socket Included	-40 °C	55 °C	DIN Rail	10 ms	7 ms	CE UKCA	Non Latching	Spring Terminal	10 A	Silver Nickel (AgNi)	250 VAC 250 VDC	51.11 kOhms	SPDT (1 Form C)	230 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.25
		10	$ 27.33
		50	$ 25.15
		100	$ 23.23
		250	$ 22.14

Description

General part information

plc-rsc Series

Industrial Relays PLC-RSC-120UC/21 RELAY PN 651-2961118
